| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | CoreShine |
| Certification: | UL, LVD, CE, ENEC, TUV, SAA, C-TICK, CB, GS, VDE, ETL |
| Model Number: | CSD1S-X2-xx |
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | one piece in one polybag |
| Delivery Time: | 4-6 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 25000-30000 pcs/month |
| Item: | Dimming Driver - 1-10V | Material: | Steel Casing |
|---|---|---|---|
| Logo: | With Coreshine LOGO Or Neutral | Color: | White |
| Working Temperature: | -20 - 60 ℃ | Warranty: | 5 Years |
| Lifespan: | 50000 Hours | Watt: | 30W, 50W, 70W... |
| Voltage(V): | 100-277V/220-240VAC | Standard: | American Standard; European Standard |
| Recharging Efficiency: | >=80% | Discharging Efficiency: | >=90% |
| Highlight: | Coreshine LED Lighting Accessories,50Hz LED Dimming Driver,70w LED Dimming Driver |
||
Coreshine LED Lighting Accessories

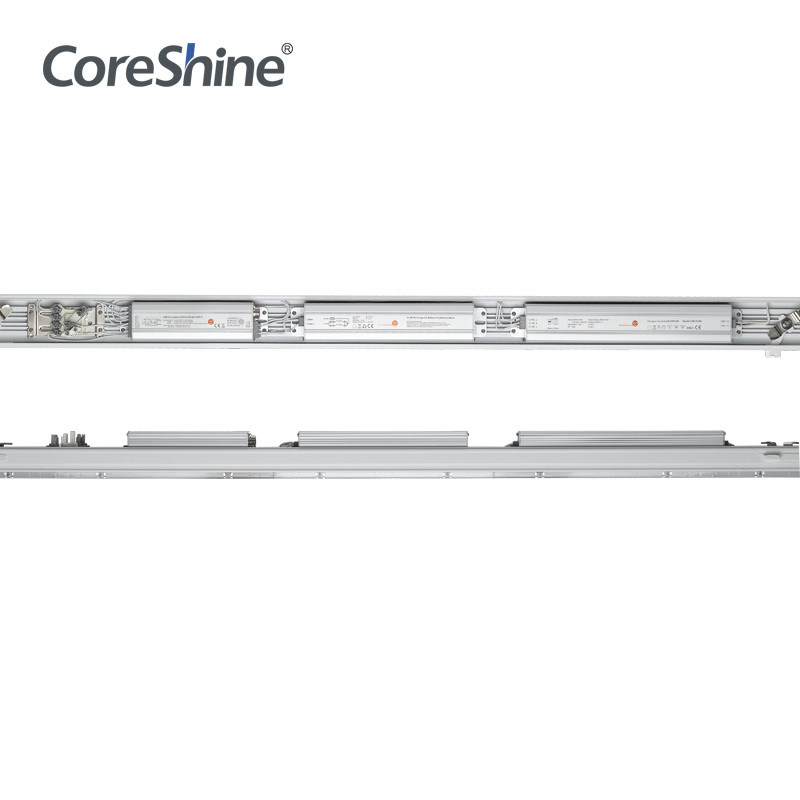

50W 70W 1-10V Dimming Driver for S-Line Led Linear Lighting System
Led Linear Lighting Dimming Driver
1-10V Dimming Driver
LED Lighting Accessories
Electronic Parameter
Constant current LED driver
Universal voltage input range
Steel casing, encapsulated
Lifetime: 50,000 h
5 year warranty
|
|
Europe Standard |
USA Standard |
||||
|
Model NO.
|
CSD2S-35-10
|
CSD2S-50-10
|
CSD2S-70-10
|
CSD1S-30-10
|
CSD1S-40-10
|
CSD1S-60-10
|
|
Power
|
35 W
|
50 W
|
70 W
|
30 W
|
40 W
|
60 W
|
|
Input voltage
|
220-240VAC
|
100-277VAC
|
||||
|
Output voltage
|
0.23 A
|
0.33 A
|
0.47 A
|
0.4 A
|
0.5 A
|
0.8 A
|
|
Output current
|
0.43A max
|
0.62A max
|
1.0A max
|
0.8A max
|
1.1A max
|
1.6A max
|
|
Inrush current
|
5 A
|
|||||
|
Insulation Resistance
|
|
>100MΩ@500VDC
|
||||
|
Efficiency
|
91%
|
87%
|
||||
|
PF(at 230V,50Hz,full load)
|
0.95
|
|||||
|
THD
|
15%
|
|||||
|
Max. Cable length
|
300 mm
|
|||||
|
Dimming
|
1-10V
|
|||||
|
Dimming Range
|
10% - 100%
|
|||||
|
Ambient temp.
|
-25 - 60 ℃
|
|||||
|
Max. Casing temp.
|
75℃
|
|||||
|
Storage temp.
|
-40 - 85 ℃
|
|||||
|
Related Driver |
Description |
Code No. |
|
Dimming Driver - Extra |
1-10V Dimming |
CSD1S-X2-10 |
|
DALI Dimming |
CSD2S-X2-DALI |
|
|
DALI PS |
CSD-PS |
|
|
Emergency Driver |
with 6W output |
CSD-E1 |
|
with 12W output |
CSD-E2 |
|
|
Emergency Battery
|
1800mAh Battery |
CSB1 |
|
3600mAh Battery |
CSB2 |
