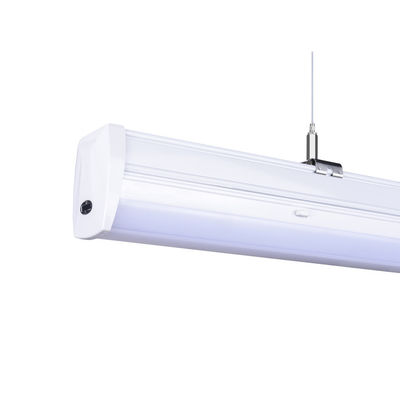

5ft 70W 7000lm Dimmable Linear LED Light Overload Protection

Basic Information
Place of Origin: Guangdong, China
Brand Name: CoreShine
Certification: UL, LVD, CE, ENEC, TUV, SAA, C-TICK, CB, GS, VDE, ETL
Model Number: CFL-xxxx-X1X2-X3WH
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: one set in one box (1678*170*92mm)
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 25000-30000 pcs/month
Detail Information
Item: DALI Led Linear Trunking Light System Material: Aluminum Alloy + PMMA Lens
Light Source: Smd2835 Length: 1200mm, 1500mm, 3000mm
Power: 35W,50W,65W,70W,120W,150W... CRI (Ra>): 80
PF: >0.95 THD: <15%
IP Rating: IP20 Application: Supermarket, Warehouse, Office, Car Parking Industrial Etc.
High Light:

7000lm dimmable linear led light

,

5ft dimmable light fittings

,

7000lm dimmable light fittings


Product Description

CCT Adjustable Led DALI Dimmable Linear Light Fixtures Overload Protection

CoreShine S-Line is a PRO-LINEAR, LED LINEAR TRUNKING SYSTEM MODULAR SUPERMARKET LIGHTS, multiple Beam Angle, Switch built in luminaire, easy and convenient for installation and maintenance. it is an ideal alternative to traditional linear fluorescent lights in a varriety of industral and commercial applications. Lighting System is a modular concept consisting of trunking rails, luminaire inserts and accessories.



  • FEATURES
  1. To be accessorial lights for warehouse, commercial palaces, public, furniture, hotel store, shop.
  2. 100% of the led light will be tested and keep lighting for 24 hours to test its quality reliability, and we will also test its temperature after 24 hours of lighting
  3. Then after it is cool we again test 100% of the lamps to see if they still work well. Each lamp should pass all these QC procedures before shipping to the customer.



  • DETAILS
Item: Led Linear Light Trunking System
Style: S-Line Material: Aluminum Alloy + PMMA lens / PC cover
Length: 1200mm, 1500mm, 2400mm, 3000mm Light Source: Smd2835 (Everlight/Samsung)
Trunking: 600mm, 1200mm, 1500mm, 2400mm, 3000mm Input Voltage: AC220-240VAC/100-277VAC
UGR: <19 CRI (Ra>): 80/95
Beam Angle: 25°;60°;90°;120°; Asymmetric; Double Asymmetric CCT: 3000K/4000K/5000K/6000K
PF: >0.95 THD: <15%
Lumen: 4800lm-19800lm Dimming: DALI, 1-10V, DIMswitch
Driver: Coreshine/Rubycon Color: White, Black, Silver
IP Rating: IP20 Light Color: Warm White, White, Cold White
Efficiency: 160lm/w Power: 35W,50W,65W,70W,100W,150W...
Warranty: 5 years Lifespan: 50000 hours
Installation Chain, Cord, Rod, Surface Mounted Connector L/T/X Node Connector can be choose
Function Dimmable (DALI/1-10V), Emergency, Sensor, Track Spot Light
Switch Type: Motion Sensor Switch Shipping: DHL/UPS/FEDEX/TNT...
Applications: Supermarket, Warehouse, Office, Stores, Shops, Commercial and Industrial Projects...




  • APPLICATIONS
Suitable for Supermarket, Warehouse, Workshop, Office, Car Parking, Schools, Classroom, Colleges, Hotels, Conference Rooms, Factories, Commercial Purposes, Industrial Projects, Institution Buildings, Universities, Hospitals, and other Architectural places that need energy saving and high color rendering index lighting.




  • Returns of Investment COMPARISON

We did a comparison test between Coreshine S-line and LED tube in the 300m² of warehouse

300 sq.m
  Unite S-Line LED Tube
Lighting Effect lm/w 160 100
Qty of Luminaire set 600 960
Total Power Consumption KW 30 48
Unite Price of Electric CNY/KWH 1.5
Light Time Hour/Day 1.2
Electric bill/day CNY 540.00 864.00
Electric bill/month CNY 16,200.00 25,920.00
Electric bill/year CNY 194,400.00 311,040.00
Save the cost per year CNY 116,640.00



5ft 70W 7000lm Dimmable Linear LED Light Overload Protection 0

  • FAQ

Q1.You are manufacturer or trading company?
A: We are factory. Welcome to visit our factory at anytime.

Q2. Where is your factory?
A:Our factory located in in Shenzhen City, Guangdong Province, China.

Q3. Do you provide NEW Design led lamp OEM services?
A: Yes, we have more than 10 years rich experiences, we often cooperate with some famous foreign companies.

Q4. How to proceed an order for led light?
A: Firstly let us know your requirements or application.

Secondly, We quote according to your requirements or our suggestions.
Thirdly, customer confirms the samples and places deposit for formal order.

Fourthly, We arrange the production.

Q5. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q6. Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our products.

Q7.How does your factory do regarding quality control?
A:Quality is priority. we always attach great importance to quality controlling from the very beginning to the very end. Our factory
has gained CE,LVD,ROHS, UL, FCC, ENEC, GS, authentication.



  • OUR SERVICES

1.We will reply to the lead time within 24 hours after receiving the customer's confirmation of each order.

2.Take photos of the goods during production and send them to customers.

3.Take pictures of goods after packaging and labeling and send them to customers.

4.Take photos of goods loading before shipment, and arrange the customs clearance information of goods and send them to the customers.

5.We will track the logistics information and update it to the customer at any time if the goods are delivered by express.

6.We will remind the customer to prepare the customs clearance documents for the goods before they arrive at the port.



5ft 70W 7000lm Dimmable Linear LED Light Overload Protection 1

5ft 70W 7000lm Dimmable Linear LED Light Overload Protection 2

5ft 70W 7000lm Dimmable Linear LED Light Overload Protection 3
