| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | CoreShine |
| Certification: | CE/CB/ETL/DTC/SAA/FCC/GS/UL |
| Model Number: | CTL-0620-X1X2-X3WH |
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | Luminaire: Size: 1549*390*210MM Gross Weight: 28.2KG Trunking rail: Size: 1700*430*142MM Gross Weight: 18.8KG 10pcs/Carton |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 25000-30000 pcs/month |
| Item: | Track Linear Light System | Length: | 600mm |
|---|---|---|---|
| Size: | 600x60x11mm | Driver: | Flicker Driver / Non-flicker Driver |
| Color: | White, Black | Light Efficiency: | 180lm/w |
| Beam Angle: | 60°;90°;120°; Double Asymmetric | Function: | Motion Sensor, Track Spot Light, Emergency Exit Sign |
| High Light: | 1500mm commercial track lighting fixtures,1500mm slim track lighting,IP20 commercial track lighting fixtures |
||
Commercial Lighting Slim Track Line 1500mm Perfect Match with Spotlight

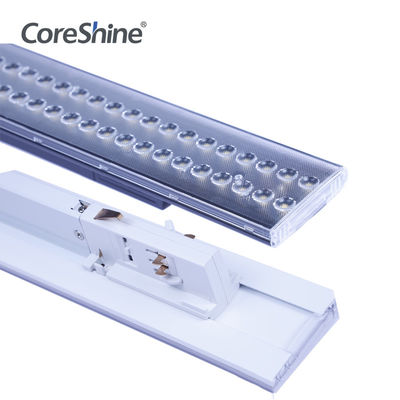

Magnetic Led Linear Track Light for Track Rail Brands 600mm 20W
DESCRIPTION
CoreShine T-LINE track led linear light is an energy-efficient, low maintenance and easy to install to any track rails in the projects. Suit for Europe Standard and North America Standard.
Cost-effective light-line solution for industrial, commercial and other applications
Good quality of light with high lumen output to meet different requirements
Easy to install, reducing time, labor, packaging waste and complexity
Flexible solution
| Item: | Led Linear Track Light System | |||||
| Series: | T-Line | Input Voltage: | AC220-240VAC/100-277VAC | |||
| Length: | 600mm,1200mm,1500mm,2400mm | Light Source: | Smd2835 (Everlight/Samsung) | |||
| Trunking: | 600mm,1000mm,1200mm,1500mm,2000mm,2400mm, 3000mm,4000mm | Material: | Aluminum Alloy + PMMA lens / PC cover | |||
| UGR: | <19 | CRI (Ra>): | 80 | |||
| Beam Angle: | 60°;90°;120°; Asymmetric; Double Asymmetric | CCT: | 3000K/4000K/5000K/6000K | |||
| PF: | >0.95 | THD: | <15% | |||
| Switch Type: | Motion Sensor Switch | Lumen: | 2128lm-16000lm | |||
| Driver: | Flicker driver / Non-flicker driver | Color: | White, Black | |||
| IP Rating: | IP20 | Light Color: | Warm White, White, Cold White | |||
| Efficiency: | 160lm/w, 180lm/w | Power: | 14W-20W,35W-50W,70W-100W | |||
| Warranty: | 5 years | Lifespan: | 50,000 h | |||
| Function | Sensor, Track Spot Light, Emergency Exit Light | Shipping: | DHL/UPS/FEDEX/TNT... | |||
| Applications: | Supermarket, Warehouse, Office, Stores, Shops, Commercial and Industrial Projects... | |||||
TRACK LINEAR
| Track rail (4 wires / 3 phases) | Track rail (3 wires / 1 phase) |
|
3 separated switchable circuits Adapter track box design ensures easy and intuitive fitting in the 3-phase track |
For North America Standard track spot light, there is only one circuit in the lamp. |
 |
|
LUMINAIRE
1.Different length with various power is available for Europe standards and North American standards.
|
Length
|
Power
|
L x W x H |
Lumen
|
Code No.
|
|
600mm
|
14W/16W/18W/20W
|
600x60x11mm |
2240lm-3200lm
|
CTL-06xx-X1X2-X3WH
|
|
1200mm
|
35W/40W/45W/50W
|
1200x60x11mm |
5600lm-8000lm
|
CTL-12xx-X1X2-X3WH
|
|
1500mm
|
35W/40W/45W/50W
|
1493x60x11mm |
5600lm-8000lm
|
CTL-15xx-X1X2-X3WH
|
|
2400mm
|
70W/80W/90W/100W
|
2400x60x11mm |
11200lm-16000lm
|
CTL-24xx-X1X2-X3WH
|
2.Different diffuser for different distribution
The high light efficiency of 160lm/Watt makes reduction on energy consumption and additional cost. The LEDs keeps enough margin to make sure the luminaire efficiency reach the best level.
FAQ
Q1.You are manufacturer or trading company?
A: We are factory. Welcome to visit our factory at anytime.
Q2. Where is your factory?
A:Our factory located in in Shenzhen City, Guangdong Province, China.
Q3. Do you provide NEW Design led lamp OEM services?
A: Yes, we have more than 10 years rich experiences, we often cooperate with some famous foreign companies.
Q4. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly, We quote according to your requirements or our suggestions.
Thirdly, customer confirms the samples and places deposit for formal order.
Fourthly, We arrange the production.
Q5. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q6. Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our products.
Q7.How does your factory do regarding quality control?
A:Quality is priority. we always attach great importance to quality controlling from the very beginning to the very end. Our factory
has gained CE,LVD,ROHS, UL, FCC, ENEC, GS, authentication.
OUR ADVANTAGES
|
|
