| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | CoreShine |
| Certification: | CE/CB/ETL/DTC/SAA/FCC/GS/UL |
| Model Number: | CTL-1235-X1X2-X3WH |
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | Luminaire: Size: 1549*390*210MM Gross Weight: 28.2KG Trunking rail: Size: 1700*430*142MM Gross Weight: 18.8KG 10pcs/Carton |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 25000-30000 pcs/month |
| Item: | Track Linear Light | Length: | 1200mm |
|---|---|---|---|
| Size: | 1200x60x11mm | CRI (Ra>): | 80 |
| Driver: | Flicker Driver / Non-flicker Driver | Power: | 35W,40W,45W,50W... |
| UGR: | <19 | CCT: | 3000K/4000K/5000K/6000K |
| Lumen: | 5600lm-8000lm | IP Rating: | IP20 |
| High Light: | 1200mm 35W led linear track light,1200mm 35W led linear light fixture,IP20 led linear light fixture |
||

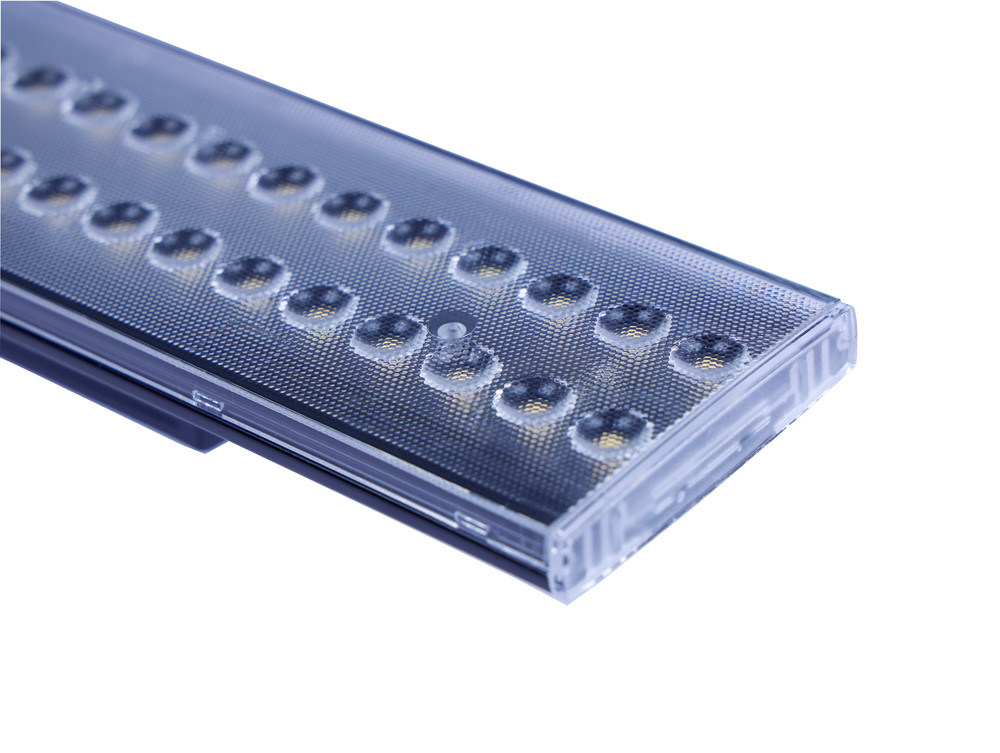

IP20 Linkabe Led Linear Track Light Fixture 1200mm 35W Warm White
DESCRIPTION
CoreShine T-LINE track led linear light is an energy-efficient, low maintenance and easy to install to any track rails in the projects. Suit for Europe Standard and North America Standard.
Cost-effective light-line solution for industrial, commercial and other applications
Good quality of light with high lumen output to meet different requirements
Easy to install, reducing time, labor, packaging waste and complexity
Flexible solution
| Item: | Led Linear Track Light System | |||||
| Series: | T-Line | Input Voltage: | AC220-240VAC/100-277VAC | |||
| Length: | 600mm,1200mm,1500mm,2400mm | Light Source: | Smd2835 (Everlight/Samsung) | |||
| Trunking: | 600mm,1000mm,1200mm,1500mm,2000mm,2400mm, 3000mm,4000mm | Material: | Aluminum Alloy + PMMA lens / PC cover | |||
| UGR: | <19 | CRI (Ra>): | 80/90/95 | |||
| Beam Angle: | 60°;90°;120°; Asymmetric; Double Asymmetric | CCT: | 3000K/4000K/5000K/6000K | |||
| PF: | >0.95 | THD: | <15% | |||
| Switch Type: | Motion Sensor Switch | Lumen: | 2128lm-16000lm | |||
| Driver: | Flicker driver / Non-flicker driver | Color: | White, Black | |||
| IP Rating: | IP20 | Light Color: | Warm White, White, Cold White | |||
| Efficiency: | 160lm/w | Power: | 14W-20W,35W-50W,70W-100W | |||
| Warranty: | 5 years | Lifespan: | 50,000 h | |||
| Function: | Sensor, Track Spot Light, Emergency Exit Light | Shipping: | DHL/UPS/FEDEX/TNT... | |||
| Applications: | Supermarket, Warehouse, Office, Stores, Shops, Commercial and Industrial Projects... | |||||
TRACK LINEAR
| Track rail (4 wires / 3 phases) | Track rail (3 wires / 1 phase) |
|
3 separated switchable circuits Adapter track box design ensures easy and intuitive fitting in the 3-phase track |
For North America Standard track spot light, there is only one circuit in the lamp. |
 |
|
LUMINAIRE
1.Different length with various power is available for Europe standards and North American standards.
|
Length
|
Power
|
L x W x H | CRI |
Lumen
|
Code No.
|
|
600mm
|
14W/16W/18W/20W
|
600x60x11mm | >80Ra |
2240lm-3200lm
|
CTL-06xx-X1X2-X3WH
|
| 600mm | 14W/16W/18W/20W | 600x60x11mm | >90Ra | 2128lm-3040lm | CTL-06xx-X1X2-X3WH |
|
1200mm
|
35W/40W/45W/50W
|
1200x60x11mm | >80Ra |
5600lm-8000lm
|
CTL-12xx-X1X2-X3WH
|
|
1500mm
|
35W/40W/45W/50W
|
1493x60x11mm | >80Ra |
5600lm-8000lm
|
CTL-15xx-X1X2-X3WH
|
| 1500mm | 35W/40W/45W/50W | 1493x60x11mm | >90Ra | 5320lm-7600lm | CTL-15xx-X1X2-X3WH |
|
2400mm
|
70W/80W/90W/100W
|
2400x60x11mm | >80Ra |
11200lm-16000lm
|
CTL-24xx-X1X2-X3WH
|
2.Different diffuser for different distribution
The high light efficiency of 160lm/Watt makes reduction on energy consumption and additional cost. The LEDs keeps enough margin to make sure the luminaire efficiency reach the best level.
FAQ
1.Are you a factory or trading company?
We are a factory, we provide ODM& OEM services.
2.What is your main product line is made?
We mainly produce led lights and lighting fixtures.Focus on commercial and industrial lighting.(led linear light, led track light etc.)
3. You have the ability to do independent research and development?
Our engineering department has 11 staffs, we have the R&D ability to make our products competitive. We also collect regularly customer feedback, products improvement and new product requirement. We also hold monthly new product launches.
4. What certificates you have?
Our products have passed CE, RoHS, EMC, UL, SAA, FCC, ENEC and GS...
5.What is your production capacity?
200,000-300,000pcs per month
6.What is the warranty?
Most of our products are 5 years warranty.
7.How about the delivery time ?
Delivery time for sample:3-5days after get your samples request and samples charge.
Delivery time for mass production: 10-18days after order confirmed after receiving buyer's deposit
8.How do you handle defects?
1/1 replacement of defects within the warranty period.
9.How about the Package & Product design?
When the quantity reaches our minimum requirement, Based on factory original box,original design on product with neutral laser and label,original package for export carton.If need your mark on products or packing, please tell us, we can do it for you.
