| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | CoreShine |
| Certification: | UL, LVD, CE, ENEC, TUV, SAA, C-TICK, CB, GS, VDE, ETL |
| Model Number: | CUL-xxxx-X1X2-X3WH |
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | one set in one box (1678*170*92mm) |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 25000-30000 pcs/month |
| Material: | Stainless Steel + PMMA Lens/PC Cover | Power: | 30W, 35W, 45W, 50W, 60W, 80W, 90W, 120W |
|---|---|---|---|
| UGR: | <19 | Color: | White |
| Light Color: | Warm White, White, Cold White | IP Rating: | IP20 |
| Light Efficiency: | 135lm/W-150lm/W | Application: | Office,Library,Supermarket,Warehouse,Workshop,etc. |
| High Light: | 45Watt emergency lighting system,4ft emergency lighting system,45Watt ceiling emergency light |
||

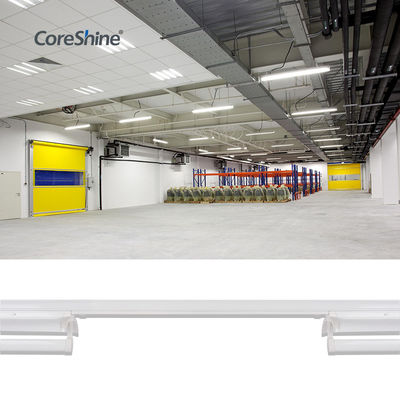

Flexible Solution Indirect Led Emergency Linear Light Fixtures 5/8/12 Cores
DESCRIPTION
Different emergency solutions for you choose
1. Central battery systems / Generator
EL1 EN1 & EL2 EN2 makes mode selected
2. Self contained battery
Under this mode, the luminaires could be 6W or 12W, working for 1.5 hours or 3 hours (depending on the demand selected in advance)
Ni-MH battery we used is high temperature resistant, which can make sure its life time to be longer.
1. TRUNKING RAIL Trunking rail is standard with 5, 8 or 12 cores through-wiring with 2.5mm² cable cross-section. Separate power supplies, dimming or emergency supply can be integrated with the 8 cores wiring.
2. LIGHT SOURCE The fitting is designed to operate a range of LED' s up to 75W. 2835 SMD.
3. OPTICS Narrow, wide distribution, right/left/double asymmetric available.
4. DIMENSIONS 1140mmx68mmx80mm /1424mmx68mmx80mm.
5. MOUNTING Suspended or surface mounted. cord hanger, ceiling mounting clip track spot light.
6. APPLICATION Suitable for indoor use only.
Dimming & Multi-Sensor System
· 3 different dimming system, DALI, 0-10V and DIMswitch
· It does not only have an integrated microwave sensor for movement detection, but also a daylight sensor.
Trunking Rail
· Trunking rail as standard with 5, 8 or 12-core through-wiring with 2.5mm²cable for power supply and 1.5mm² cable for dimming control.
· The maximum current is 16A, allowing 70pcs of 1500mm 45W in one serial row 220VAC power supply,up to 100 meters.
Emergency Lighting Function
· It can work on normal mains and automatically switch to emergency supply in the event of a power failure to provide sufficient light and ensure safe evacuation in emergency situations.
· A wide variety of self contained battery is available, as well as two independent emergency lighting circuits in the trunking.
Uplighting
Directs 10% of the light upward to the ceiling and 90% reflected onto the floor, with or without uplighting is available
Length Options
Different length with various power is available
Europe standards and North American standards
| Item: | Led Linear Lighting with Emergency Driver | |||||
| Style: | U-Line | Material: | Aluminum Alloy + PMMA lens / PC cover | |||
| Length: | 1200mm, 1500mm, 2400mm | Light Source: | Smd2835 (Everlight/Samsung) | |||
| Trunking: | 600mm, 1200mm, 1500mm, 2400mm, 3000mm | Input Voltage: | AC220-240VAC/100-277VAC | |||
| UGR: | <19 | CRI (Ra>): | 80/95 | |||
| Beam Angle: | 60°;120°; Asymmetric; Double Asymmetric | CCT: | 3000K/4000K/5000K/6000K | |||
| PF: | >0.95 | THD: | <15% | |||
| Lumen: | 4000lm-16000lm | Dimming: | DALI, 1-10V, DIMswitch | |||
| Driver: | Coreshine/Rubycon | Color: | White Housing | |||
| IP Rating: | IP20 | Light Color: | Warm White, White, Cold White | |||
| Efficiency: | 135lm/w-150lm/w | Power: | 35W,50W,65W,70W,100W,150W... | |||
| Warranty: | 5 years | Lifespan: | 50000 hours | |||
| Installation | Chain, Cord, Rod, Surface Mounted | Connector | L/T/X Node Connector can be choose | |||
| Function | Dimmable (DALI/1-10V), Emergency, Sensor, Track Spot Light | |||||
| Switch Type: | Motion Sensor Switch Optional | Shipping: | DHL/UPS/FEDEX/TNT... | |||
| Applications: | Office, Supermarket, Warehouse, Stores, Shops, Commercial and Industrial Projects... | |||||
Warehouse / Factory / Workshop
Hotel / Hospital / Supermarket
Conference / Meeting room / Factory / Office
Residential Home / Institution Building
School / College / University
Church / Theater / Sport Area
Q:Do you have a factory ?
A:Yes,we are the top professional manufacture for this product.
Q:Do you have patent for this product?
A:Yes,we have patent in appearance design and function design.
Q:What is the maximum power in one line?
A:3500W
Q:Can it be DALI or 1-10V dimming?
A:Yes,it can be DALI dimming or 1-10V dimming or DIM switch.
5 year warranty, to best support our customers.
For quality issue from our side, we are responsible for repairing.
For manual damage or incorrect usage from customer side, CoreShine is to repair while charge caused is at your side, but only a cost price.
