| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | CoreShine |
| Certification: | UL, LVD, CE, ENEC, TUV, SAA, C-TICK, CB, GS, VDE, ETL |
| Model Number: | CUL-xxxx-X1X2-X3WH |
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | one set in one box (1678*170*92mm) |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 25000-30000 pcs/month |
| CRI (Ra>): | 80/95 | Lumen: | 4000lm-16000lm |
|---|---|---|---|
| UGR: | <19 | Lens: | NR(Narrow), NU(Narrow Uplighting), FD(Flood), FU(Flood Uplighting) |
| CCT: | 3000K/4000K/5000K/6000K | Dimming: | DALI, 1-10V, DIMswitch |
| Light Color: | Warm White, White, Cold White | Light Efficiency: | 135lm/W-150lm/W |
| High Light: | 2.4m indirect light fittings,UL indirect light fittings,2.4m supermarket led lighting |
||

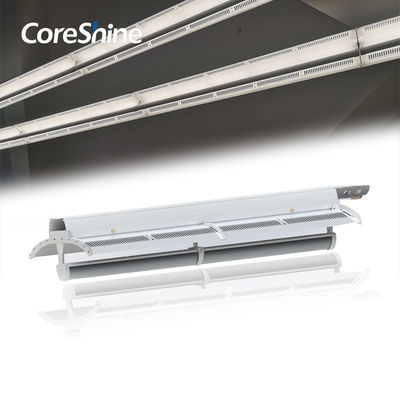

UL 2400mm 60W Pre Wired Linear Indirect Lighting for Supermarket
Linkable Led Linear Indirect Lighting System DTL RoHS TUV GS Proved
DESCRIPTION
Lighting System is a modular concept consisting of trunking rails, luminaire inserts and accessories.
Dimming & Multi-Sensor System
· 3 different dimming system, DALI, 0-10V and DIMswitch
· It does not only have an integrated microwave sensor for movement detection, but also a daylight sensor.
Trunking Rail
· Trunking rail as standard with 5, 8 or 12-core through-wiring with 2.5mm²cable for power supply and 1.5mm² cable for dimming control.
· The maximum current is 16A, allowing 70pcs of 1500mm 45W in one serial row 220VAC power supply,up to 100 meters.
Installation
· Chain Installation
· Cord Installation
· Rod Installation
· Surface Mounted
. Mounting Clip
Install to trunking rail where there is no requirement of luminaire .
At each of the blank cover there is a stopper to prevent the lights from being emmited.
Uplighting
Directs 10% of the light upward to the celling and 90% reflected onto the floor ,with or without uplighting is available
Length Options
Different length with various power is available
Europe standards and North American standards
| North American Standard | European Standard | |
| Options |
·1200mm 30W 4000lm / 45W 6000lm / 60W 8000lm ·2400mm 60W 8000lm/ 90W 12000lm/ 120W 16000lm . Flicker/non-flicker driver optional . 0-10V driver optional |
. 1500mm 35W 5000lm/ 50W 7000lm/ 70W 10000lm . 2400mm 70W 10000lm / 120W 17000lm . Flicker/non-flicker driver optional . Dali/1-10V/standard driver optional |
| Description |
Electrical Characteristics | 0-10V Dimming Driver | 30W/45W/60W Length : 2400MM Constant current LED driver Life time:50,000h 5 years warranty |
Electrical Characteristics | Output Selectable Driver | 50W/70W Length : 1500MM Constant current LED driver Life time: 50,000h 5 year warranty |
| Properties |
High efficiency >=88% Over voltage protection with automatic restart Overload protection Short-circuit protection with automatic restart Surge voltage: 2.5KV |
High efficiency >=90% Over voltage protection with automatic restart Overload protection Short-circuit protection with automatic restart Surge voltage: 2.5KV |
| Item: | Led Linear Light Trunking System | |||||
| Style: | U-Line | Material: | Aluminum Alloy + PMMA lens / PC cover | |||
| Length: | 1200mm, 1500mm, 2400mm | Light Source: | Smd2835 (Everlight/Samsung) | |||
| Trunking: | 600mm, 1200mm, 1500mm, 2400mm, 3000mm | Input Voltage: | AC220-240VAC/100-277VAC | |||
| UGR: | <19 | CRI (Ra>): | 80/95 | |||
| Beam Angle: | 60°;120°; Asymmetric; Double Asymmetric | CCT: | 3000K/4000K/5000K/6000K | |||
| PF: | >0.95 | THD: | <15% | |||
| Lumen: | 4000lm-16000lm | Dimming: | DALI, 1-10V, DIMswitch | |||
| Driver: | Coreshine/Rubycon | Color: | White Housing | |||
| IP Rating: | IP20 | Light Color: | Warm White, White, Cold White | |||
| Efficiency: | 135lm/w-150lm/w | Power: | 35W,50W,65W,70W,100W,150W... | |||
| Warranty: | 5 years | Lifespan: | 50000 hours | |||
| Installation | Chain, Cord, Rod, Surface Mounted | Connector | L/T/X Node Connector can be choose | |||
| Function | Dimmable (DALI/1-10V), Emergency, Sensor, Track Spot Light | |||||
| Switch Type: | Motion Sensor Switch Optional | Shipping: | DHL/UPS/FEDEX/TNT... | |||
| Applications: | Office, Supermarket, Warehouse, Stores, Shops, Commercial and Industrial Projects... | |||||
Warehouse / Factory / Workshop
Hotel / Hospital / Supermarket
Conference / Meeting room / Factory / Office
Residential Home / Institution Building
School / College / University
Church / Theater / Sport Area
Q:Do you have a factory ?
A:Yes,we are the top professional manufacture for this product.
Q:Do you have patent for this product?
A:Yes,we have patent in appearance design and function design.
Q:What is the maximum power in one line?
A:3500W
Q:Can it be DALI or 1-10V dimming?
A:Yes,it can be DALI dimming or 1-10V dimming or DIM switch.
