4 Foot 8 Wires Pre Wired Linear Trunking For Commercial Lighting

Basic Information
Place of Origin: Guangdong, China
Brand Name: CoreShine
Certification: UL, LVD, CE, ENEC, TUV, SAA, C-TICK, CB, GS, VDE, ETL
Model Number: CFT-12X,-08WH
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1 set/paper box 157*78*35cm
Delivery Time: 4-6 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20000-25000 sets/month
Detail Information
Item: Led Linear Light Trunking Rail Length: 1200mm
Input Voltage(V): AC220-240VAC/100-277VAC Wires: 8 Cores
Connector: L/T/X Node Connector Can Be Choose Warranty: 5 Years
Applications: Led Linear Light Solution Installation Method: Chain, Cord, Rod, Surface Mounted
Color: White
High Light:

coreshine trunking rail


4 foot 8 Wires trunking rail


coreshine Commercial Lighting

Product Description

4 Foot 8 Wires Pre-Wired Linear Trunking | Commercial Lighting

Product Details


Flexible Linear Trunking Rail for Led Linear Light 1200mm 8 Wires


Coreshine Linear Trunking Rail The flexible trunking system for lighting demands in all application, with full compatible modular kit, it adapts individually to complex lighting tasks. It has an 12-pole current conducting section built into its trunking. This means that the system comes ready equipped to meet tomorrow's needs. ll functions such as power supply, lighting control and connection to emergency lighting are seamlessly integrated into this multifunctional trunking. Luminaires can be positioned flexibly and the system can be adapted to suit structural alterations at any time.

The trunking rail is simply a matter of replacing or adding lighting modulars, light sources or optics as required.

  • A pre-wired 3-phases & 2.5 mm power supply.
  • Phase conversion function with connector.
  • Allow Max 16A and 200 meters trunking length in 3-phases power supply system.
  • Endless combination with diversified modules.
  • Tool-free installation
  • Node connectors enable system to be connected in different directions.
  • Dimming, self-battery emergency or central emergency function as options.
  • Support surface ceiling mounting and suspension.
  Europe Standards USA Standards
Length 600mm, 1500mm, 3000mm 600mm, 1200mm, 2400mm

5 wire: L1, L2, L3, N, PE

8 wire: L1, L2, L3 N, FG, CHR, + 2 wires for Dimming/Emergency

12 wire: L1, L2, L3, N, FG, CHR, +2 wires for Dimming + 4 wires for Emergency Connector & Battery

Product Pictures​

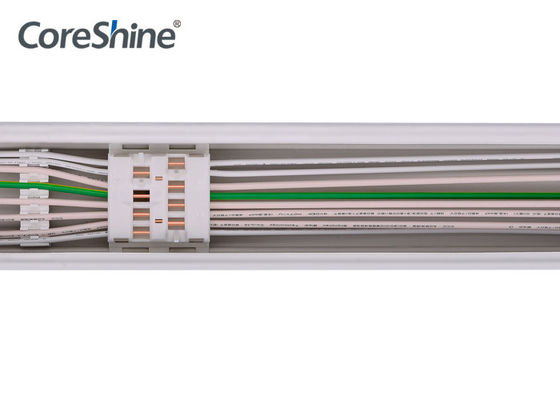

4 Foot 8 Wires Pre Wired Linear Trunking For Commercial Lighting 0

4 Foot 8 Wires Pre Wired Linear Trunking For Commercial Lighting 1

4 Foot 8 Wires Pre Wired Linear Trunking For Commercial Lighting 2

Our Advantages
  • 5 years warranty
  • Toolless installation
  • Brand Components
  • Heat radiating area 106cm²/w
  • Longer warranty, Less maintenance
  • Rigorous technical
  • Quick connector
  • Electrical safety design
  • Organized wiring
  • Modularity, integration structure
