4500mm Stainless Steel On And Off Pre Wired Linear Trunking Rail

Basic Information
Place of Origin: Guangdong, China
Brand Name: CoreShine
Certification: UL, LVD, CE, ENEC, TUV, SAA, C-TICK, CB, GS, VDE, ETL
Model Number: CFT-45X,-12WH
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1 set/paper box 157*78*35cm
Delivery Time: 4-6 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20000-25000 sets/month
Detail Information
Item: Led Linear Light Trunking Rail System Length: 4500mm
Input Voltage(V): AC220-240VAC/100-277VAC Wires: 12 Cores
Connector: L/T/X Node Connector Can Be Choose Color: White
Warranty: 5 Years Applications: Led Linear Lighting Solution
Mounting: Surface Mounted Installation Method: Chain, Cord, Rod, Surface Mounted
High Light:

4500mm led trunking system

,

SS led trunking system

,

SS led linear trunking system


Product Description

4500mm Stainless Steel On/Off Pre-Wired Linear Trunking Rail

Product Details

Adjustable Linear Trunking Rail for Led Linear Light 1200mm 12 Wires



Coreshine Linear Trunking Rail

  • 3-phase pre-selection via moving luminaire male connector pin to right or left to installation in rail
  • Trunking rail as standard with 12 core through-wiring with 2.5mm2 cable for power supply and 1.5mm2 cable for dimming control
  • The maximum current is 16A, allowing 70pcs of 1500mm 50w in one serial row 220VAC power supply
  • Separate power suppliers, dimming or emergency supply can be integrated
  • Electrical feed possible in sideward or end area of a trunking rail arrangement via special trunking rail element
  • Wide distances between suspension points to 3m with self-supporting connector elements
  • Simple mounting of trunking rail elements with pre-assembled connectors with the integral plug-in system ( electrical and mechanical connector )
  • Flexible electrical feed-in and feed-out points
  Europe Standards USA Standards
Length 600mm, 1500mm, 3000mm 600mm, 1200mm, 2400mm
Wires

5 wire: L1, L2, L3, N, PE

8 wire: L1, L2, L3 N, FG, CHR, + 2 wires for Dimming/Emergency

12 wire: L1, L2, L3, N, FG, CHR, +2 wires for Dimming + 4 wires for Emergency Connector & Battery

Product Pictures​

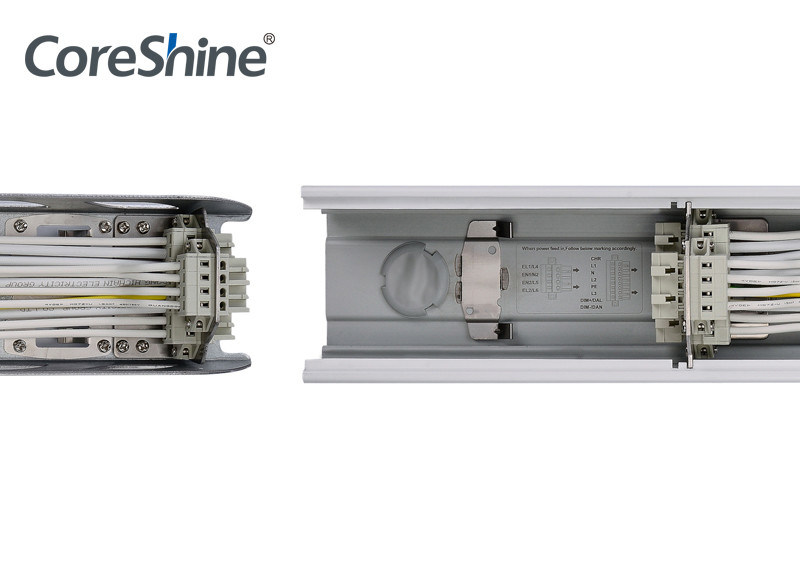

4500mm Stainless Steel On And Off Pre Wired Linear Trunking Rail 0


4500mm Stainless Steel On And Off Pre Wired Linear Trunking Rail 1


4500mm Stainless Steel On And Off Pre Wired Linear Trunking Rail 2
