|Place of Origin:||Guangdong, China|
|Certification:||UL, LVD, CE, ENEC, TUV, SAA, C-TICK, CB, GS, VDE, ETL|
|Minimum Order Quantity:||1 piece|
|Packaging Details:||one set in one box (1678*170*92mm)|
|Delivery Time:||5-8 working days|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Supply Ability:||25000-30000 pcs/month|
|Item:||Emergency Led Linear Lighting Fixtures||Material:||Aluminum Alloy + PMMA Lens|
|Light Source:||Samsung Smd2835||Length:||1200mm, 1500mm, 2400mm|
|UGR:||<19||Beam Angle:||25°;60°;90°;120°; Double Asymmetric|
IP54 Emergency Linear Light,
IP54 Emergency Light Fixtures,
4000K Emergency Linear Light
IP54 Emergency Linear Light
High Lumen Led Emergency Linear Light Solutions 5 Years Warranty

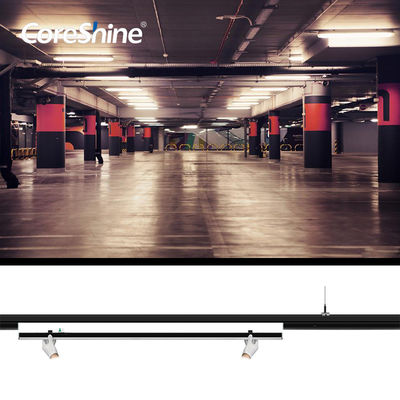

Linear Trunking System S-Line series is not a simple light, it is a integrated lighting solution. With its advantages of energy-efficiency, low maintenance costs and convenient installation, it is an ideal alternative to traditional linear fluorescent lights in a varriety of industrial and commercial applications. Lighting System is a modular concept consisting of trunking rails, luminaire inserts and accessories.
Coreshine Led Linear Lighting with Emergency Solution
Thanks to the preset 8-wire & 12 wire trunking rail, emergency lighting can be well integrated into standard lighting. With two independent emergency lighting circuits and a self-contained emergency driver & battery, Coreshine's LED Linear Lighting System can provide full or reduced power in the event of power failure, General lighting combines with automatic emergency lighting into one integrative lighting solution. You can easy to work out the emergency lighting solution with this system.
In the luminaire with emergency function, there are one LED lamp driver connect to external emergency supply, or LED lamp driver with one emergency driver and battery to control the lamp for general lighting or emergency lighting.
Emergency driver is for switching from mains to emergency operation. When power cut happens, emergency driver will automatically switch to self contained battery.
By self contained emergency supply, luminaire work at reduced power: 6W(CSSD-E1) or 12W(CSSD-E2)
CoreShine uses Nickel metal-hydride (NiMH) battery. The battery in the lamp is rechargeable and it is maintenance-free. There are two options for battery:1800mAh (CSSB1) and 3600mAh (CSSB2), which deliver different illumination and duration time under 6W (CSSD-E1) or 12W (CSSD-E2) emergency power.
LED lamp driver provides power to the luminaire directly. Options are provided with 35W, 50W or 70W to drive for a variety of illumination for different lighting requirements of diverse areas.
With the new design, CoreShine Led Linear Lighting System offer two emergency lighting models, users can choose by themselves according to the actual needs of different projects.
Emergency Lighting Models
Based on emergency supply, Coreshine's linear emergency light falls into two models as follows:
- by external emergency supply only ( EL1/EL2)
- by internal emergency supply only ( emergency drive and built-in battery supply )
|Item:||Emergency Led Linear Light Trunking System|
|Style:||S-Line||Material:||Aluminum Alloy + PMMA lens / PC cover|
|Length:||1200mm, 1500mm, 2400mm, 3000mm||Light Source:||Smd2835 (Everlight/Samsung)|
|Trunking:||600mm, 1200mm, 1500mm, 2400mm, 3000mm||Input Voltage:||AC220-240VAC/100-277VAC|
|Beam Angle:||25°;60°;90°;120°; Asymmetric; Double Asymmetric||CCT:||3000K/4000K/5000K/6000K|
|Lumen:||4800lm-19800lm||Dimming:||DALI, 1-10V, DIMswitch|
|Driver:||Coreshine/Rubycon||Color:||White, Black, Silver|
|IP Rating:||IP20/IP54||Light Color:||Warm White, White, Cold White|
|Warranty:||5 years||Lifespan:||50000 hours|
|Installation||Chain, Cord, Rod, Surface Mounted||Connector||L/T/X Node Connector can be choose|
|Function||Dimmable (DALI/1-10V), Emergency, Sensor, Track Spot Light|
|Switch Type:||Motion Sensor Switch||Shipping:||DHL/UPS/FEDEX/TNT...|
|Applications:||Supermarket, Warehouse, Office, Stores, Shops, Commercial and Industrial Projects...|
