|Place of Origin:||Guangdong, China|
|Certification:||UL, LVD, CE, ENEC, TUV, SAA, C-TICK, CB, GS, VDE, ETL|
|Minimum Order Quantity:||1 piece|
|Packaging Details:||one set in one box (1678*170*92mm)|
|Delivery Time:||5-8 working days|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Supply Ability:||25000-30000 pcs/month|
|Item:||Supermarket Led Linear Trunking System||Material:||Aluminum Alloy + PMMA Lens/PC Cover|
|CRI (Ra>):||80||Dimming:||DALI, 1-10V, DIMswitch|
|Light Color:||Warm White, White, Cold White||IP Rating:||IP20|
180lm/W supermarket lighting,
150cm supermarket lighting,
180lm/w trunking lighting system

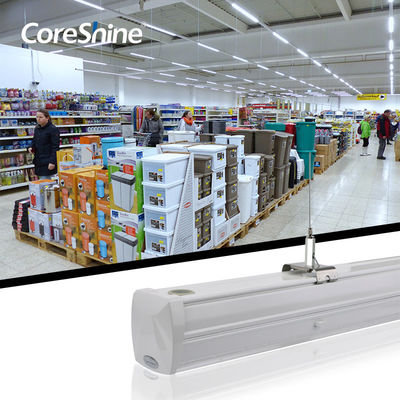

TUV Pre Wired Linear Trunking System , 1500mm 180lm/W Supermarket Lighting
Commercial Used LED Linear Supermarket Lighting System with CRI80
High quality Aluminum housing, rust and oil removed, under anti-rust treated and rust proof for 8-10 years under normal application, with white/black/grey powder coating.
Housing is made of anodized aluminum, it has 85-95% reflection, and the UGR is lower than 19.
The light designed by the LED stripe with Polycarbonate cover together, high efficiency and no glare, it will give novel visual effect and soft luminosity.
It uses LED Sumsung SMD 2835.
CoreShine or Famous logo standard driver or Dali / Dimmable driver.
Suspended mounting, Track installation.
CoreShine can provide detailed 3D modeling and lighting design services for your project, including wiring schematics and lighting control system design. Contact us for more information.
Fixture colour can be refinished
CCT 4200K available by request
Customization options are subject to minimum order quantities
|Item:||Led Linear Light Trunking System|
|Style:||S-Line||Material:||Aluminum Alloy + PMMA lens / PC cover|
|Length:||1200mm, 1500mm, 2400mm, 3000mm||Light Source:||Smd2835 (Everlight/Samsung)|
|Trunking:||600mm, 1200mm, 1500mm, 2400mm, 3000mm||Input Voltage:||AC220-240VAC/100-277VAC|
|Beam Angle:||25°;60°;90°;120°; Asymmetric; Double Asymmetric||CCT:||3000K/4000K/5000K/6000K|
|Lumen:||4800lm-19800lm||Dimming:||DALI, 1-10V, DIMswitch|
|Driver:||Coreshine/Rubycon||Color:||White, Black, Silver|
|IP Rating:||IP20||Light Color:||Warm White, White, Cold White|
|Warranty:||5 years||Lifespan:||50000 hours|
|Installation||Chain, Cord, Rod, Surface Mounted||Connector||L/T/X Node Connector can be choose|
|Function||Dimmable (DALI/1-10V), Emergency, Sensor, Track Spot Light|
|Switch Type:||Motion Sensor Switch||Shipping:||DHL/UPS/FEDEX/TNT...|
|Applications:||Supermarket, Warehouse, Office, Stores, Shops, Commercial and Industrial Projects...|
We did a comparison test between Coreshine S-line and LED tube in the 300m² of warehouse
|Qty of Luminaire||set||600||960|
|Total Power Consumption||KW||30||48|
|Unite Price of Electric||CNY/KWH||1.5|
|Save the cost per year||CNY||116,640.00|
Q1. Can I have a sample order for the led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 5-10 days, mass production time needs 3-4 weeks for order quantity more than 1000pcs
Q3. Do you have any MOQ limit for the led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx, or TNT. It usually takes 5-7 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed with an order for led light?
A: Firstly let us know your requirements or application.
Secondly, We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places a deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. only available for mass order.
Q7: Do you offer a guarantee for the products?
A: Yes, we offer 5 years warranty on our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.3%.
Secondly, during the guarantee period, we will send new lights with a new order for small quantities. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to the real situation.
