| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | CoreShine |
| Certification: | UL, LVD, CE, ENEC, TUV, SAA, C-TICK, CB, GS, VDE, ETL |
| Model Number: | CUL-xxxx-X1X2-X3WH |
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | one set in one box (1678*170*92mm) |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 25000-30000 pcs/month |
| Length: | 1200mm, 1500mm, 2400mm | Power: | 30W, 35W, 45W, 50W, 70W, 90W, 120W |
|---|---|---|---|
| UGR: | <19 | Beam Angle: | 60°;120°; Double Asymmetric |
| PF: | >0.95 | Color: | White |
| Lifespan (hours): | 50000 | Application: | Office,Library,Supermarket,Warehouse,Workshop,etc. |
| High Light: | 600mm 70W indirect linear lighting,10000lm wall mounted indirect lighting,70W 600mm wall mounted indirect lighting |
||
Continuous Mounting Led Linear Indirect Lighting System 100% Reflected
DESCRIPTION
In a combination with our various aluminum profile housing and latest energy-saving technology, you will get any desirable led linear light to decelerate your shopping mall, office, clothing market, etc.
Trunking Rail
· Trunking rail as standard with 5, 8 or 12-core through-wiring with 2.5mm²cable for power supply and 1.5mm² cable for dimming control.
· The maximum current is 16A, allowing 70pcs of 1500mm 45W in one serial row 220VAC power supply,up to 100 meters.
Emergency Lighting Function
· It can work on normal mains and automatically switch to emergency supply in the event of a power failure to provide sufficient light and ensure safe evacuation in emergency situations.
· A wide variety of self contained battery is available, as well as two independent emergency lighting circuits in the trunking.
Installation
· Chain Installation
· Cord Installation
· Rod Installation
· Surface Mounted
. Mounting Clip
Node Connector
· L, T and X Standard Module Node connectors
· Each node connector has diverse of electrical feed-in and feed-out
Uplighting
Directs 10% of the light upward to the ceiling and 90% reflected onto the floor, with or without uplighting is available

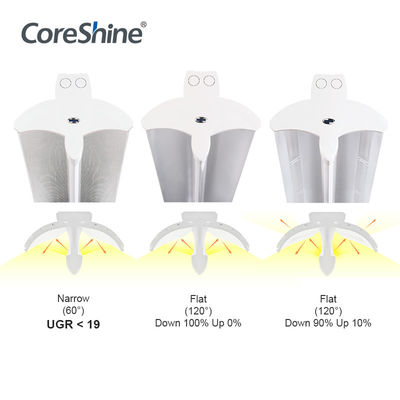

Beam Angle
Unique reflective design, two different reflector face forms two kinds of reflection angle
Length Options
Different length with various power is available
Europe standards and North American standards
| North American Standard | European Standard | |
| Options |
·1200mm 30W 4000lm / 45W 6000lm / 60W 8000lm ·2400mm 60W 8000lm/ 90W 12000lm/ 120W 16000lm . Flicker/non-flicker driver optional . 0-10V driver optional |
. 1500mm 35W 5000lm/ 50W 7000lm/ 70W 10000lm . 2400mm 70W 10000lm / 120W 17000lm . Flicker/non-flicker driver optional . Dali/1-10V/standard driver optional |
| Description |
Electrical Characteristics | 0-10V Dimming Driver | 30W/45W/60W Length : 2400MM Constant current LED driver Life time:50,000h 5 years warranty |
Electrical Characteristics | Output Selectable Driver | 50W/70W Length : 1500MM Constant current LED driver Life time: 50,000h 5 year warranty |
| Properties |
High efficiency >=88% Over voltage protection with automatic restart Overload protection Short-circuit protection with automatic restart Surge voltage: 2.5KV |
High efficiency >=90% Over voltage protection with automatic restart Overload protection Short-circuit protection with automatic restart Surge voltage: 2.5KV |
| Item: | Led Linear Light Trunking System | |||||
| Style: | U-Line | Material: | Aluminum Alloy + PMMA lens / PC cover | |||
| Length: | 1200mm, 1500mm, 2400mm | Light Source: | Smd2835 (Everlight/Samsung) | |||
| Trunking: | 600mm, 1200mm, 1500mm, 2400mm, 3000mm | Input Voltage: | AC220-240VAC/100-277VAC | |||
| UGR: | <19 | CRI (Ra>): | 80/95 | |||
| Beam Angle: | 60°;120°; Asymmetric; Double Asymmetric | CCT: | 3000K/4000K/5000K/6000K | |||
| PF: | >0.95 | THD: | <15% | |||
| Lumen: | 4000lm-16000lm | Dimming: | DALI, 1-10V, DIMswitch | |||
| Driver: | Coreshine/Rubycon | Color: | White Housing | |||
| IP Rating: | IP20 | Light Color: | Warm White, White, Cold White | |||
| Efficiency: | 135lm/w-150lm/w | Power: | 35W,50W,65W,70W,100W,150W... | |||
| Warranty: | 5 years | Lifespan: | 50000 hours | |||
| Installation | Chain, Cord, Rod, Surface Mounted | Connector | L/T/X Node Connector can be choose | |||
| Function | Dimmable (DALI/1-10V), Emergency, Sensor, Track Spot Light | |||||
| Switch Type: | Motion Sensor Switch Optional | Shipping: | DHL/UPS/FEDEX/TNT... | |||
| Applications: | Office, Supermarket, Warehouse, Stores, Shops, Commercial and Industrial Projects... | |||||
Warehouse / Factory / Workshop
Hotel / Hospital / Supermarket
Conference / Meeting room / Factory / Office
Residential Home / Institution Building
School / College / University
Church / Theater / Sport Area
Q:Do you have a factory ?
A:Yes,we are the top professional manufacture for this product.
Q:What is the maximum power in one line?
A:3500W
Q:Can it be DALI or 1-10V dimming?
A:Yes,it can be DALI dimming or 1-10V dimming or DIM switch.
