| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | CoreShine |
| Certification: | UL, LVD, CE, ENEC, TUV, SAA, C-TICK, CB, GS, VDE, ETL |
| Model Number: | CUL-xxxx-X1X2-X3WH |
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | one set in one box (1678*170*92mm) |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 25000-30000 pcs/month |
| Power: | 30W, 35W, 45W, 50W, 60W, 70W, 100W, 120W | UGR: | <19 |
|---|---|---|---|
| Lens: | NR(Narrow), NU(Narrow Uplighting), FD(Flood), FU(Flood Uplighting) | CCT: | 3000K/4000K/5000K/6000K |
| Light Efficiency: | 150lm/W | Working Temperature: | -20 - 65 ℃ |
| Warranty: | 5 Years | Lifespan (hours): | 50000 |
| High Light: | 6000lm dimmable linear led light,UGR19 dimmable linear led light,UGR19 dimmable 4ft led fixture |
||

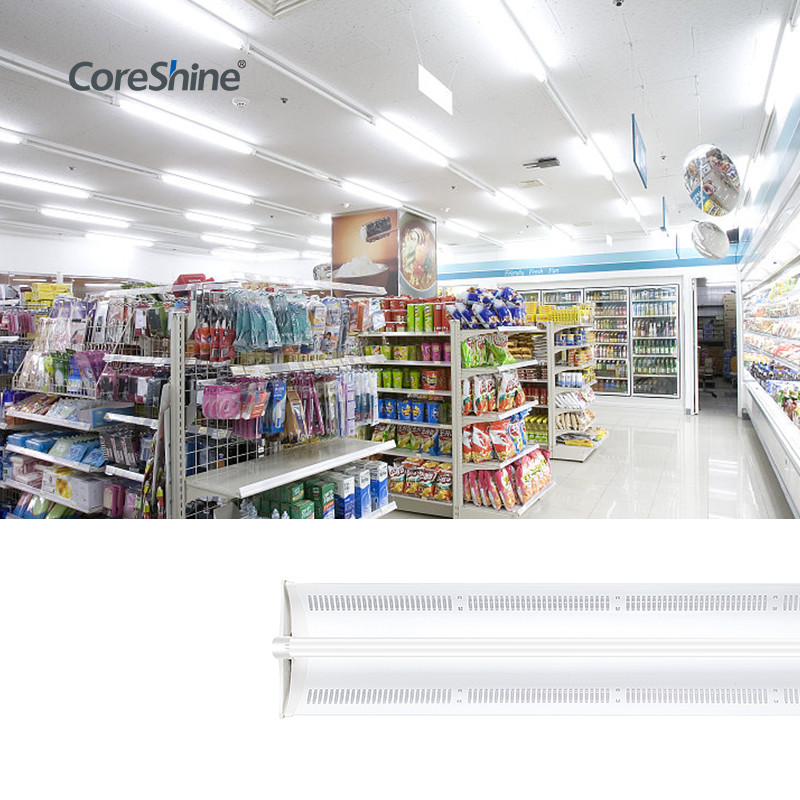

Low Maintenance Dimmable Linear Led Light with Tridonic DALI
Indirect Led Dimmable Linear Light Fitting For Shops Different Length
DESCRIPTION
In a combination with our various aluminum profile housing and latest energy-saving technology, you will get any desirable led linear light to decelerate your shopping mall, office, clothing market, etc.
Dimming & Multi-Sensor System
· 3 different dimming system, DALI, 0-10V and DIMswitch
· It does not only have an integrated microwave sensor for movement detection, but also a daylight sensor.
Installation
· Chain Installation
· Cord Installation
· Rod Installation
· Surface Mounted
. Mounting Clip
Install to trunking rail where there is no requirement of luminaire .
At each of the blank cover there is a stopper to prevent the lights from being emmited.
Uplighting
Directs 10% of the light upward to the celling and 90% reflected onto the floor ,with or without uplighting is available
Beam Angle
Unique reflective design, two different reflector face forms two kinds of reflection angle
Length Options
Different length with various power is available
Europe standards and North American standards
| North American Standard | European Standard | |
| Options |
·1200mm 30W 4000lm / 45W 6000lm / 60W 8000lm ·2400mm 60W 8000lm/ 90W 12000lm/ 120W 16000lm . Flicker/non-flicker driver optional . 0-10V driver optional |
. 1500mm 35W 5000lm/ 50W 7000lm/ 70W 10000lm . 2400mm 70W 10000lm / 120W 17000lm . Flicker/non-flicker driver optional . Dali/1-10V/standard driver optional |
| Description |
Electrical Characteristics | 0-10V Dimming Driver | 30W/45W/60W Length : 2400MM Constant current LED driver Life time:50,000h 5 years warranty |
Electrical Characteristics | Output Selectable Driver | 50W/70W Length : 1500MM Constant current LED driver Life time: 50,000h 5 year warranty |
| Properties |
High efficiency >=88% Over voltage protection with automatic restart Overload protection Short-circuit protection with automatic restart Surge voltage: 2.5KV |
High efficiency >=90% Over voltage protection with automatic restart Overload protection Short-circuit protection with automatic restart Surge voltage: 2.5KV |
| Item: | Led Dimmable Linear Light Trunking System | |||||
| Style: | U-Line | Material: | Aluminum Alloy + PMMA lens / PC cover | |||
| Length: | 1200mm, 1500mm, 2400mm | Light Source: | Smd2835 (Everlight/Samsung) | |||
| Trunking: | 600mm, 1200mm, 1500mm, 2400mm, 3000mm | Input Voltage: | AC220-240VAC/100-277VAC | |||
| UGR: | <19 | CRI (Ra>): | 80/95 | |||
| Beam Angle: | 60°;120°; Asymmetric; Double Asymmetric | CCT: | 3000K/4000K/5000K/6000K | |||
| PF: | >0.95 | THD: | <15% | |||
| Lumen: | 4000lm-16000lm | Dimming: | DALI, 1-10V, DIMswitch | |||
| Driver: | Coreshine/Rubycon | Color: | White Housing | |||
| IP Rating: | IP20 | Light Color: | Warm White, White, Cold White | |||
| Efficiency: | 135lm/w-150lm/w | Power: | 35W,50W,65W,70W,100W,150W... | |||
| Warranty: | 5 years | Lifespan: | 50000 hours | |||
| Installation | Chain, Cord, Rod, Surface Mounted | Connector | L/T/X Node Connector can be choose | |||
| Function | Dimmable (DALI/1-10V), Emergency, Sensor, Track Spot Light | |||||
| Switch Type: | Motion Sensor Switch Optional | Shipping: | DHL/UPS/FEDEX/TNT... | |||
| Applications: | Office, Supermarket, Warehouse, Stores, Shops, Commercial and Industrial Projects... | |||||
• Innovative Structure Design
• Operating temperature -22C to 65°C
• Linkable for continuous runs
Warehouse / Factory / Workshop
Hotel / Hospital / Supermarket
Conference / Meeting room / Factory / Office
Residential Home / Institution Building
School / College / University
Church / Theater / Sport Area
Q:Do you have a factory ?
A:Yes,we are the top professional manufacture for this product.
Q:Do you have patent for this product?
A:Yes,we have patent in appearance design and function design.
Q:What is the maximum power in one line?
A:3500W
Q:Can it be DALI or 1-10V dimming?
A:Yes,it can be DALI dimming or 1-10V dimming or DIM switch.
