| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | CoreShine |
| Certification: | UL, LVD, CE, ENEC, TUV, SAA, C-TICK, CB, GS, VDE, ETL |
| Model Number: | CUL-xxxx-X1X2-X3WH |
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | one set in one box (1678*170*92mm) |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 25000-30000 pcs/month |
| Power: | 30W, 35W, 45W, 50W, 60W, 70W, 90W, 120W | Lumen: | 4000lm-16000lm |
|---|---|---|---|
| UGR: | <19 | Lens: | NR(Narrow), NU(Narrow Uplighting), FD(Flood), FU(Flood Uplighting) |
| Dimming: | DALI, 1-10V, DIMswitch | Light Color: | Warm White, White, Cold White |
| IP Rating: | IP20 | Application: | Office,Library,Supermarket,Warehouse,Workshop,etc. |
| High Light: | 4ft retail lighting fixtures,IP20 45w retail lighting fixtures,4ft indirect pendant lighting |
||
Store Led Linear Reflect Retail Lighting System 1.2m 1.5m 2.4m
PRODUCT DESCRIPTION
Lighting System is a modular concept consisting of trunking rails, luminaire inserts and accessories.
Save energy:
Lower glare:
Unique double parabolic grille designed according to the principle of optics, it can effectively prevent and eliminate all kinds of glare, and it is not easy for eyes to produce visual fatigue for long time.
Easy to be installed:
The light is easy to be installed by stainess hung wire or hung cable.
Long life:
It has a certain distance between the LED SMD and the diffuser. The heat dissipation provides enough space to ensure the long life of the light. The light life has more than 50000hrs.
Dimming & Multi-Sensor System
· 3 different dimming system, DALI, 0-10V and DIMswitch
· It does not only have an integrated microwave sensor for movement detection, but also a daylight sensor.
Trunking Rail
· Trunking rail as standard with 5, 8 or 12-core through-wiring with 2.5mm²cable for power supply and 1.5mm² cable for dimming control.
· The maximum current is 16A, allowing 70pcs of 1500mm 45W in one serial row 220VAC power supply,up to 100 meters.
Node Connector
· L, T and X Standard Module Node connectors
· Each node connector has diverse of electrical feed-in and feed-out
Install to trunking rail where there is no requirement of luminaire .
At each of the blank cover there is a stopper to prevent the lights from being emmited.
Uplighting
Directs 10% of the light upward to the ceiling and 90% reflected onto the floor ,with or without uplighting is available

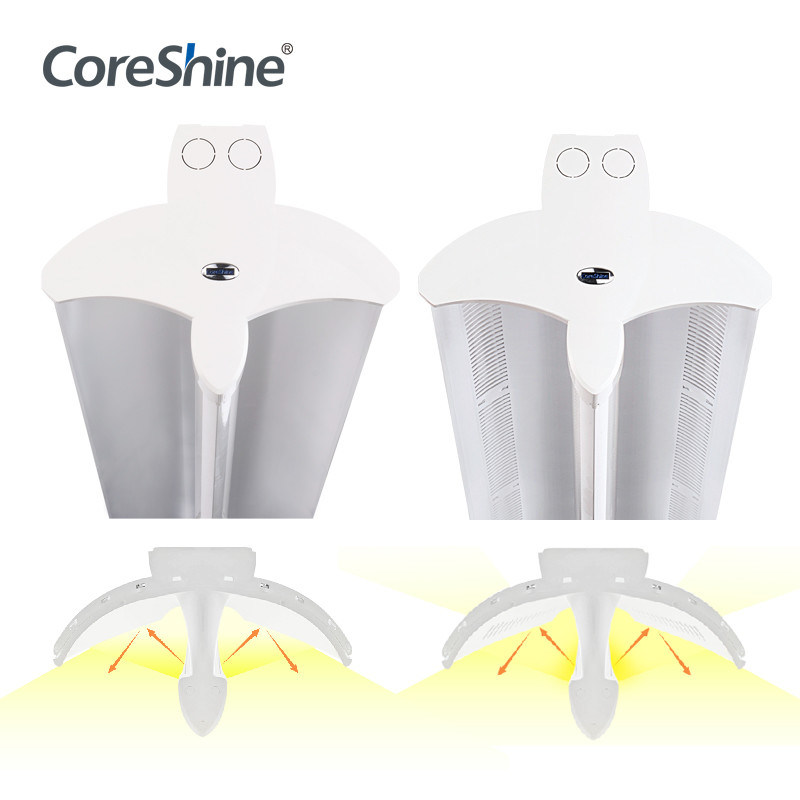

Beam Angle
Unique reflective design, two different reflector face forms two kinds of reflection angle
Length Options
Different length with various power is available
Europe standards and North American standards
|
Length
|
H x W x L(mm) |
Power
|
Lumen
|
Code No.
|
|
1200mm
|
185x236x1205 |
30W
|
4800lm
|
CUL-1230-X1X2-X3WH
|
|
1200mm
|
185x236x1205 |
40W
|
6400lm
|
CUL-1240-X1X2-X3WH
|
|
1200mm
|
185x236x1205 |
60W
|
9600lm
|
CUL-1260-X1X2-X3WH
|
|
1500mm
|
185x236x1503 |
35W
|
5600lm
|
CUL-1535-X1X2-X3WH
|
|
1500mm
|
185x236x1503 |
50W
|
8000lm
|
CUL-1550-X1X2-X3WH
|
|
1500mm
|
185x236x1503 |
70W
|
11200lm
|
CUL-1570-X1X2-X3WH
|
|
2400mm
|
185x236x2406 |
60W
|
9600lm
|
CUL-2460-X1X2-X3WH
|
|
2400mm
|
185x236x2406 |
80W
|
12800lm
|
CUL-2480-X1X2-X3WH
|
|
2400mm
|
185x236x2406 |
120W
|
19600lm
|
CUL-24120-X1X2-X3WH
|
| Item: | Led Linear Light Trunking System | |||||
| Style: | U-Line | Material: | Stainless Steel + PMMA lens / PC cover | |||
| Length: | 1200mm, 1500mm, 2400mm | Light Source: | Smd2835 (Everlight/Samsung) | |||
| Trunking: | 600mm, 1200mm, 1500mm, 2400mm, 3000mm | Input Voltage: | AC220-240VAC/100-277VAC | |||
| UGR: | <19 | CRI (Ra>): | 80/95 | |||
| Beam Angle: | 60°;120°; Asymmetric; Double Asymmetric | CCT: | 3000K/4000K/5000K/6000K | |||
| PF: | >0.95 | THD: | <15% | |||
| Lumen: | 4000lm-16000lm | Dimming: | DALI, 1-10V, DIMswitch | |||
| Driver: | Coreshine/Rubycon | Color: | White Housing | |||
| IP Rating: | IP20 | Light Color: | Warm White, White, Cold White | |||
| Efficiency: | 135lm/w-150lm/w | Power: | 35W,50W,65W,70W,100W,150W... | |||
| Warranty: | 5 years | Lifespan: | 50000 hours | |||
| Installation | Chain, Cord, Rod, Surface Mounted | Connector | L/T/X Node Connector can be choose | |||
| Function | Dimmable (DALI/1-10V), Emergency, Sensor, Track Spot Light | |||||
| Switch Type: | Motion Sensor Switch Optional | Shipping: | DHL/UPS/FEDEX/TNT... | |||
| Applications: | Office, Supermarket, Warehouse, Stores, Shops, Commercial and Industrial Projects... | |||||
Warehouse / Factory / Workshop
Hotel / Hospital / Supermarket
Conference / Meeting room / Factory / Office
Residential Home / Institution Building
School / College / University
Church / Theater / Sport Area
Q:Do you have a factory ?
A:Yes,we are the top professional manufacture for this product.
Q:Do you have patent for this product?
A:Yes,we have patent in appearance design and function design.
Q:What is the maximum power in one line?
A:3500W
Q:Can it be DALI or 1-10V dimming?
A:Yes,it can be DALI dimming or 1-10V dimming or DIM switch.
