| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | CoreShine |
| Certification: | UL, LVD, CE, ENEC, TUV, SAA, C-TICK, CB, GS, |
| Model Number: | "CFM-1208-X1 WH -X2" |
| Minimum Order Quantity: | 1 set |
| Price: | US$12-US$22/set |
| Packaging Details: | one set in one box (1678*170*92mm) |
| Delivery Time: | 6-10 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20000-25000 sets/month |
| Item: | Led Linear Light Trunking Sytem With Track Spotlight | Beam Angle: | 25°;60°;90°;120°; Asymmetric; Double Asymmetric |
|---|---|---|---|
| Material: | Aluminum Alloy + PMMA Lens/PC Cover | Application: | Supermarket, Warehouse, Workshop, Office, Car Parking Industrial Etc. |
| Light Source: | Smd2835 | Length: | 1200mm, 1500mm, 2400mm, 3000mm |
| CRI (Ra>): | 80 | UGR: | <19 |
| CCT: | 3000K/4000K/5000K/6000K | PF: | >0.95 |
| THD: | <15% | Lumen: | 4800lm-19800lm |
| Dimming: | DALI, 1-10V, DIMswitch | Driver: | Coreshine/Rubycon |
| Color: | White, Black, Silver | Light Color: | Warm White, White, Cold White |
| IP Rating: | IP20/IP54 | Light Efficiency: | 160lm/w |
| Power: | 35W,50W,65W;70W,100W,150W... | Warranty: | 5 Years |
| Lifespan (hours): | 50000 | ||
| High Light: | 3000mm track lighting rail,retail stores track lighting rail,track light rail size 3000mm |
||

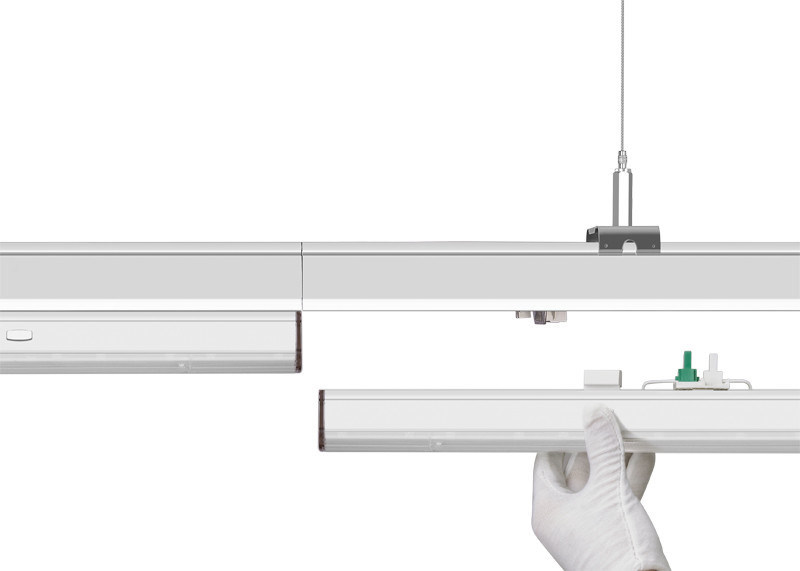

Retail Stores Led Linear Track Lighting Rail with Track Spot Light
| Power | 31W/45W | |
| CRI | >80Ra | >90Ra |
| Luminous flux | 2650lm/3850lm | 2500lm/3600lm |
| Light Source | Philips Lumileds COB | |
| Beam Angle | 14°,24°,34° | |
| CCT | 2700K/3000K/4000K/5000K | |
| Type | 5, 8, or 12 wire | |
| Length | Power | Lumen | Code No. |
|---|---|---|---|
|
1200mm
|
30W
|
4800lm
|
CFL-1230-X1X2-X3WH
|
|
1200mm
|
40W
|
6400lm
|
CFL-1240-X1X2-X3WH
|
|
1200mm
|
60W
|
9600lm
|
CFL-1260-X1X2-X3WH
|
|
1500mm
|
35W
|
5600lm
|
CFL-1535-X1X2-X3WH
|
|
1500mm
|
50W
|
8000lm
|
CFL-1550-X1X2-X3WH
|
|
1500mm
|
70W
|
11200lm
|
CFL-1570-X1X2-X3WH
|
|
2400mm
|
60W
|
9600lm
|
CFL-2460-X1X2-X3WH
|
|
2400mm
|
80W
|
12800lm
|
CFL-2480-X1X2-X3WH
|
|
2400mm
|
120W
|
19600lm
|
CFL-24120-X1X2-X3WH
|
Return of Investment Comparison
We did a comparison test between Coreshine S-line and LED tube in the 300m² of warehouse
| 300 sq.m | |||
|---|---|---|---|
| Unite | S-line | LED Tube | |
| Lighting Effect | lm/w | 160 | 100 |
| Qty of Luminaire | set | 600 | 960 |
| Total Power Consumption | KW | 30 | 48 |
| Unite Price of Electric | CNY/KWH | 1.5 | |
| Light Time | Hour/Day | 1.2 | |
| Electric bill /day | CNY | 540.00 | 864.00 |
| Electric bill / month | CNY | 16,200.00 | 25,920.00 |
| Electric bill / year | CNY | 194,400.00 | 311,040.00 |
| Save the cost per year | CNY | 116,640.00 | |
According to the simulation, the purchase cost will payback within 2 years
