IP54 LED Warehouse Lighting

Basic Information
Place of Origin: Guangdong, China
Brand Name: CoreShine
Certification: UL, LVD, CE, ENEC, TUV, SAA, C-TICK, CB, GS, VDE, ETL
Model Number: CFL-1530-X1X2-X3WH
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: one set in one box (1678*170*92mm)
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 25000-30000 pcs/month
Detail Information
Item: 1500mm Led Linear Lighting System Material: Aluminum Alloy + PMMA Lens/PC Cover
Length: 1500mm Power: 80W
CRI (Ra>): 80/95 CCT: 3000K/4000K/5000K/6000K
Lumen: 4800lm-19800lm Dimming: DALI, 1-10V, DIMswitch
Light Efficiency: 160lm/w
High Light:

IP54 LED Warehouse Lighting

,

IP54 LED Workshop Lighting

,

80W Linear Pendant Light Fixture


Product Description

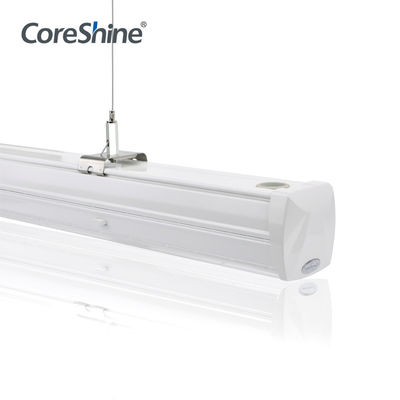

IP54 LED Warehouse Lighting



Workshop Linear High Bay Warehouse Lighting Aluminium IK 08 80W IP54



Industrial Pendant Led Linear Light System in Warehouse 1500mm 30W

LED linear light the latest new led trunking linear system, it is divided into 2parts-the aluminum trunking rail and the linear lighting module, easy to install and maintain. It is pre-mounted with 5/8/12 wires, with 3 phase and 4 wires electronic circuit design, can work at the continuous run 250m. It is widely used for supermarkets, warehouses, workshops, fairs, and so on.



FEATURES

  1. Seamless continuous connection
  2. Special optical design, multiple beam angle, UGR less than 19
  3. The trunking rail with built-in connection accessories, to connect the electronic parts and structure
  4. Three colors of the lamp body, black, white, silver
  5. Installation methods, ceiling and suspending
  6. ​High lumen lighting efficiency up to 160LM/W.

DETAILS

Item: Led Linear Light Trunking System
Style: S-Line Material: Aluminum Alloy + PMMA lens / PC cover
Length: 1200mm, 1500mm, 2400mm, 3000mm Light Source: Smd2835 (Everlight/Samsung)
Trunking: 600mm, 1200mm, 1500mm, 2400mm, 3000mm Input Voltage: AC220-240VAC/100-277VAC
UGR: <19 CRI (Ra>): 80/95
Beam Angle: 25°;60°;90°;120°; Asymmetric; Double Asymmetric CCT: 3000K/4000K/5000K/6000K
PF: >0.95 THD: <15%
Lumen: 4800lm-19800lm Dimming: DALI, 1-10V, DIMswitch
Driver: Coreshine/Rubycon Color: White, Black, Silver
IP Rating: IP20/IP54 Light Color: Warm White, White, Cold White
Efficiency: 160lm/w Power: 35W,50W,65W,70W,100W,150W...
Warranty: 5 years Lifespan: 50000 hours
Installation Chain, Cord, Rod, Surface Mounted Connector L/T/X Node Connector can be choose
Function Dimmable (DALI/1-10V), Emergency, Sensor, Track Spot Light
Switch Type: Motion Sensor Switch Shipping: DHL/UPS/FEDEX/TNT...
Applications: Supermarket, Warehouse, Office, Stores, Shops, Commercial and Industrial Projects...


APPLICATIONS

Suitable for Supermarket, Warehouse, Workshop, Office, Stores, Car Parking, Schools, Classroom, Colleges, Hotels, Conference Rooms, Factories, Commercial Purposes, Industrial Projects, Institution Buildings, Universities, Hospitals, and other Architectural places that need energy saving and high color rendering index lighting.


Returns of Investment COMPARISON

We did a comparison test between Coreshine S-line and LED tube in the 300m² of warehouse

300 sq.m
  Unite S-Line LED Tube
Lighting Effect lm/w 160 100
Qty of Luminaire set 600 960
Total Power Consumption KW 30 48
Unite Price of Electric CNY/KWH 1.5
Light Time Hour/Day 1.2
Electric bill/day CNY 540.00 864.00
Electric bill/month CNY 16,200.00 25,920.00
Electric bill/year CNY 194,400.00 311,040.00
Save the cost per year CNY 116,640.00



IP54 LED Warehouse Lighting 0



  • FAQ

Q1. Can I have a sample order for the led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 5-10 days, mass production time needs 3-4 weeks for order quantity more than 1000pcs
Q3. Do you have any MOQ limit for the led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx, or TNT. It usually takes 5-7 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed with an order for led light?
A: Firstly let us know your requirements or application.
Secondly, We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places a deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. only available for mass order.
Q7: Do you offer a guarantee for the products?
A: Yes, we offer 5 years warranty on our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.3%.
Secondly, during the guarantee period, we will send new lights with a new order for small quantities. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to the real situation.



  • APPLICATIONS
IP54 LED Warehouse Lighting 1
