| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | CoreShine |
| Certification: | UL, LVD, CE, ENEC, TUV, SAA, C-TICK, CB, GS, VDE, ETL |
| Model Number: | CUL-xxxx-X1X2-X3WH |
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | one set in one box (1678*170*92mm) |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 25000-30000 pcs/month |
| Length: | 2400mm | Power: | 60W |
|---|---|---|---|
| CRI (Ra>): | 80/95 | Lens: | NR(Narrow), NU(Narrow Uplighting), FD(Flood), FU(Flood Uplighting) |
| Dimming: | DALI, 1-10V, DIMswitch | Light Color: | Warm White, White, Cold White |
| Light Efficiency: | 150lm/W | Working Temperature: | -20 - 65 ℃ |
| High Light: | 150lm/W industrial warehouse lighting fixtures,2400mm industrial warehouse lighting fixtures,2400mm continuous linear lighting |
||
Continuous Industrial Warehouse Lighting Fixtures 2400mm 60W 150lm/W UGR<19
Surface Mounted Led Linear Indirect Warehouse Lighting Solutions
DESCRIPTION
• Innovative Structure Design
• Operating temperature -22C to 65°C
• Linkable for continuous runs
• Suspendant or Surface Mounting Installation
Dimming & Multi-Sensor System
· 3 different dimming system, DALI, 0-10V and DIMswitch
· It does not only have an integrated microwave sensor for movement detection, but also a daylight sensor.
Trunking Rail
· Trunking rail as standard with 5, 8 or 12-core through-wiring with 2.5mm²cable for power supply and 1.5mm² cable for dimming control.
· The maximum current is 16A, allowing 70pcs of 1500mm 45W in one serial row 220VAC power supply,up to 100 meters.
Emergency Lighting Function
· It can work on normal mains and automatically switch to emergency supply in the event of a power failure to provide sufficient light and ensure safe evacuation in emergency situations.
· A wide variety of self contained battery is available, as well as two independent emergency lighting circuits in the trunking.
Install to trunking rail where there is no requirement of luminaire .
At each of the blank cover there is a stopper to prevent the lights from being emitted.
Uplighting
Directs 10% of the light upward to the ceiling and 90% reflected onto the floor, with or without uplighting is available
Length Options
Different length with various power is available
Europe standards and North American standards
|
Length
|
H x W x L(mm) |
Power
|
Lumen
|
Code No.
|
|
1200mm
|
185x236x1205 |
30W
|
4800lm
|
CUL-1230-X1X2-X3WH
|
|
1200mm
|
185x236x1205 |
40W
|
6400lm
|
CUL-1240-X1X2-X3WH
|
|
1200mm
|
185x236x1205 |
60W
|
9600lm
|
CUL-1260-X1X2-X3WH
|
|
1500mm
|
185x236x1503 |
35W
|
5600lm
|
CUL-1535-X1X2-X3WH
|
|
1500mm
|
185x236x1503 |
50W
|
8000lm
|
CUL-1550-X1X2-X3WH
|
|
1500mm
|
185x236x1503 |
70W
|
11200lm
|
CUL-1570-X1X2-X3WH
|
|
2400mm
|
185x236x2406 |
60W
|
9600lm
|
CUL-2460-X1X2-X3WH
|
|
2400mm
|
185x236x2406 |
80W
|
12800lm
|
CUL-2480-X1X2-X3WH
|
|
2400mm
|
185x236x2406 |
120W
|
19600lm
|
CUL-24120-X1X2-X3WH
|
| Item: | Led Linear Light Trunking System | |||||
| Style: | U-Line | Material: | Aluminum Alloy + PMMA lens / PC cover | |||
| Length: | 1200mm, 1500mm, 2400mm | Light Source: | Smd2835 (Everlight/Samsung) | |||
| Trunking: | 600mm, 1200mm, 1500mm, 2400mm, 3000mm | Input Voltage: | AC220-240VAC/100-277VAC | |||
| UGR: | <19 | CRI (Ra>): | 80/90/95 | |||
| Beam Angle: | 60°;120°; Asymmetric; Double Asymmetric | CCT: | 3000K/4000K/5000K/6000K | |||
| PF: | >0.95 | THD: | <15% | |||
| Lumen: | 4000lm-16000lm | Dimming: | DALI, 1-10V, DIMswitch | |||
| Driver: | Coreshine/Rubycon | Color: | White Housing | |||
| IP Rating: | IP20 | Light Color: | Warm White, White, Cold White | |||
| Efficiency: | 135lm/w-150lm/w | Power: | 35W,50W,65W,70W,100W,150W... | |||
| Warranty: | 5 years | Lifespan: | 50000 hours | |||

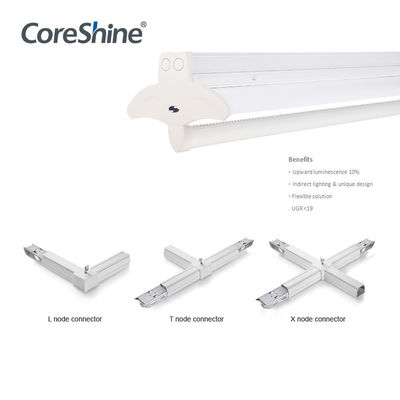

| Installation | Chain, Cord, Rod, Surface Mounted | Connector | L/T/X Node Connector can be choose | |||
| Function | Dimmable (DALI/1-10V), Emergency, Sensor, Track Spot Light | |||||
| Switch Type: | Motion Sensor Switch Optional | Shipping: | DHL/UPS/FEDEX/TNT... | |||
| Applications: | Office, Supermarket, Warehouse, Stores, Shops, Commercial and Industrial Projects... | |||||
Q:Do you have a factory ?
A:Yes,we are the top professional manufacture for this product.
Q:Do you have patent for this product?
A:Yes,we have patent in appearance design and function design.
Q:What is the maximum power in one line?
A:3500W
Q:Can it be DALI or 1-10V dimming?
A:Yes,it can be DALI dimming or 1-10V dimming or DIM switch.
