| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | CoreShine |
| Certification: | UL, LVD, CE, ENEC, TUV, SAA, C-TICK, CB, GS, VDE, ETL |
| Model Number: | CUL-xxxx-X1X2-X3WH |
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | one set in one box (1678*170*92mm) |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 25000-30000 pcs/month |
| Material: | Stainless Steel + PMMA Lens/PC Cover | Length: | 1200mm, 1500mm, 2400mm |
|---|---|---|---|
| Power: | 30W, 35W, 45W, 50W, 60W, 70W, 80W, 100W | CRI (Ra>): | 80/95 |
| UGR: | <19 | Lens: | NR(Narrow), NU(Narrow Uplighting), FD(Flood), FU(Flood Uplighting) |
| Light Color: | Warm White, White, Cold White | IP Rating: | IP20 |
| High Light: | 120cm waterproof industrial lighting,120cm linear high bay light,80CRI linear high bay light |
||

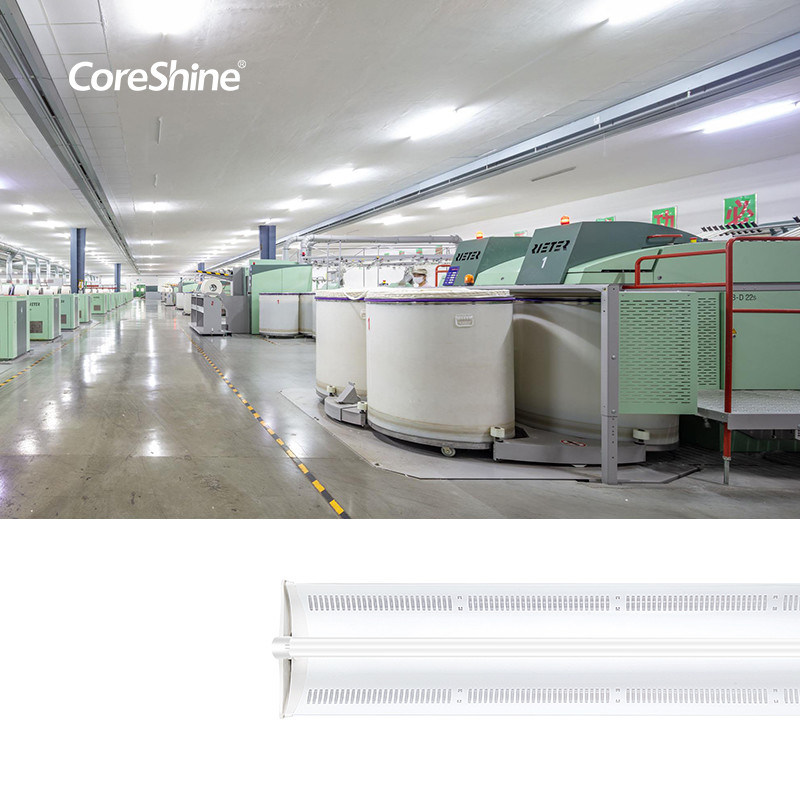

Waterproof Industrial Lighting for Warehouse | Linear High Bay Light Line
Workshop Led Linear Indirect Warehouse Lighting 3000K 4000K 5000K 6000K
DESCRIPTION
Dimming & Multi-Sensor System
· 3 different dimming system, DALI, 0-10V and DIMswitch
· It does not only have an integrated microwave sensor for movement detection, but also a daylight sensor.
Trunking Rail
· Trunking rail as standard with 5, 8 or 12-core through-wiring with 2.5mm²cable for power supply and 1.5mm² cable for dimming control.
· The maximum current is 16A, allowing 70pcs of 1500mm 45W in one serial row 220VAC power supply,up to 100 meters.
Emergency Lighting Function
· It can work on normal mains and automatically switch to emergency supply in the event of a power failure to provide sufficient light and ensure safe evacuation in emergency situations.
· A wide variety of self contained battery is available, as well as two independent emergency lighting circuits in the trunking.
Installation
· Chain Installation
· Cord Installation
· Rod Installation
· Surface Mounted
. Mounting Clip
Node Connector
· L, T and X Standard Module Node connectors
· Each node connector has diverse of electrical feed-in and feed-out
Install to trunking rail where there is no requirement of luminaire .
At each of the blank cover there is a stopper to prevent the lights from being emitted.
Uplighting
Directs 10% of the light upward to the ceiling and 90% reflected onto the floor, with or without uplighting is available
Beam Angle
Unique reflective design, two different reflector face forms two kinds of reflection angle
Length Options
Different length with various power is available
Europe standards and North American standards
|
Length
|
H x W x L(mm) |
Power
|
Lumen
|
Code No.
|
|
1200mm
|
185x236x1205 |
30W
|
4800lm
|
CUL-1230-X1X2-X3WH
|
|
1200mm
|
185x236x1205 |
40W
|
6400lm
|
CUL-1240-X1X2-X3WH
|
|
1200mm
|
185x236x1205 |
60W
|
9600lm
|
CUL-1260-X1X2-X3WH
|
|
1500mm
|
185x236x1503 |
35W
|
5600lm
|
CUL-1535-X1X2-X3WH
|
|
1500mm
|
185x236x1503 |
50W
|
8000lm
|
CUL-1550-X1X2-X3WH
|
|
1500mm
|
185x236x1503 |
70W
|
11200lm
|
CUL-1570-X1X2-X3WH
|
|
2400mm
|
185x236x2406 |
60W
|
9600lm
|
CUL-2460-X1X2-X3WH
|
|
2400mm
|
185x236x2406 |
80W
|
12800lm
|
CUL-2480-X1X2-X3WH
|
|
2400mm
|
185x236x2406 |
120W
|
19600lm
|
CUL-24120-X1X2-X3WH
|
| Item: | Led Linear Warehouse Lighting System | |||||
| Style: | U-Line | Material: | Stainless Steel + PMMA lens / PC cover | |||
| Length: | 1200mm, 1500mm, 2400mm | Light Source: | Smd2835 (Everlight/Samsung) | |||
| Trunking: | 600mm, 1200mm, 1500mm, 2400mm, 3000mm | Input Voltage: | AC220-240VAC/100-277VAC | |||
| UGR: | <19 | CRI (Ra>): | 80/95 | |||
| Beam Angle: | 60°;120°; Asymmetric; Double Asymmetric | CCT: | 3000K/4000K/5000K/6000K | |||
| PF: | >0.95 | THD: | <15% | |||
| Lumen: | 4000lm-16000lm | Dimming: | DALI, 1-10V, DIMswitch | |||
| Driver: | Coreshine/Rubycon | Color: | White Housing | |||
| IP Rating: | IP20 | Light Color: | Warm White, White, Cold White | |||
| Efficiency: | 135lm/w-150lm/w | Power: | 35W,50W,65W,70W,100W,150W... | |||
| Warranty: | 5 years | Lifespan: | 50000 hours | |||
| Installation | Chain, Cord, Rod, Surface Mounted | Connector | L/T/X Node Connector can be choose | |||
| Function | Dimmable (DALI/1-10V), Emergency, Sensor, Track Spot Light | |||||
| Switch Type: | Motion Sensor Switch Optional | Shipping: | DHL/UPS/FEDEX/TNT... | |||
| Applications: | Office, Supermarket, Warehouse, Stores, Shops, Commercial and Industrial Projects... | |||||
Warehouse / Factory / Workshop
Hotel / Hospital / Supermarket
Conference / Meeting room / Factory / Office
Residential Home / Institution Building
School / College / University
Church / Theater / Sport Area
