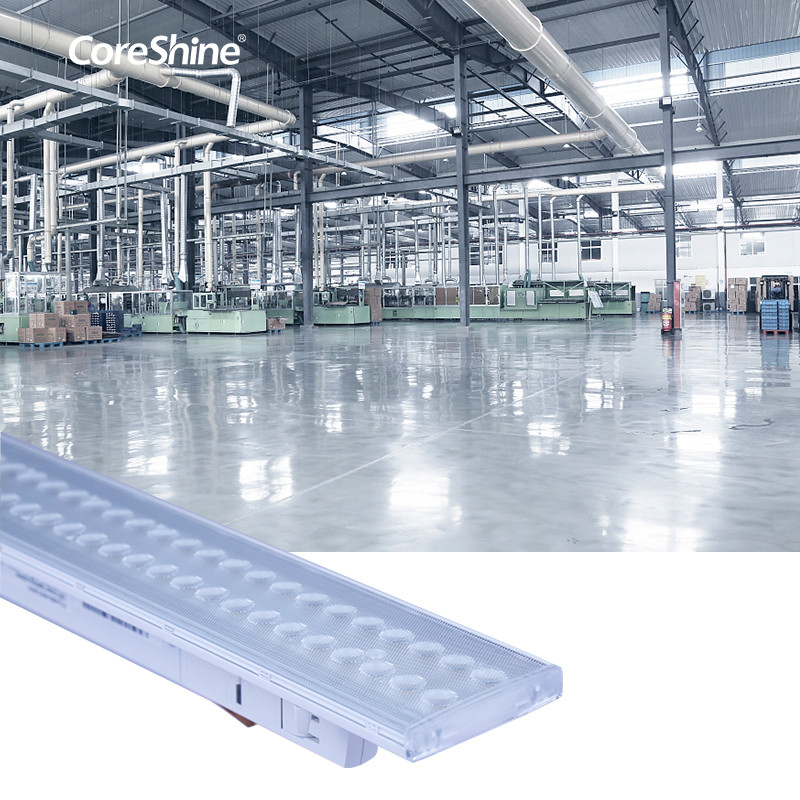

Linear High Bay Warehouse Lighting Linkable Seamless Linear Trunking System

Basic Information
Place of Origin: Guangdong, China
Brand Name: CoreShine
Certification: CE/CB/ETL/DTC/SAA/FCC/GS/UL
Model Number: CTL-xxxx-X1X2-X3WH
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Luminaire: Size: 1549*390*210MM Gross Weight: 28.2KG Trunking rail: Size: 1700*430*142MM Gross Weight: 18.8KG 10pcs/Carton
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 25000-30000 pcs/month
Detail Information
Item: Warehouse Lighting Solutions Length: 600mm, 1200mm, 1500mm, 2400mm
CCT: 2700K/3000K/4000K/5000K/5700K/6000K/6500K Lumen: 2240lm-16000lm
CRI: >80Ra/>90Ra Light Color: Warm White, White, Cold White
Application: Supermarket, Warehouse, Workshop, Office, Car Parking Industrial Etc. Lifespan: 50000 Hours
High Light:

16000lm warehouse fluorescent light fixtures

,

CoreShine architectural track lighting

,

16000lm architectural track lighting


Product Description

Workshop Led Linear Track Warehouse Lighting Solutions 5 years warranty



​​DESCRIPTION

CoreShine T-LINE track led linear light is an energy-efficient, low maintenance and easy to install to any track rails in the projects. Suit for Europe Standard and North America Standard.

LED linear track light is exclusively designed for designers and architects with imagination and personal style.LED linear light adopt premium aluminum profile, different dimension, and size, easy to install. Different customized dimensions are also acceptable, which can meet install location requirements of different fields and occasions.

  • LED - High brightness LED chips, good brightness, low heat, high color rendering
  • Aluminium Alloy - not easy to yellowing, uniform luminescence, soft and warm light
  • Colors Options - White, Black Finish, modern and fashion.



Item: Led Track Linear Warehouse Lighting Solutions
Series: T-Line Input Voltage: AC220-240VAC/100-277VAC
Length: 600mm,1200mm,1500mm,2400mm Light Source: Smd2835 (Everlight/Samsung)
Trunking: 600mm,1000mm,1200mm,1500mm,2000mm,2400mm, 3000mm,4000mm Material: Aluminum Alloy + PMMA lens / PC cover
UGR: <19 CRI (Ra>): 80/90/95
Beam Angle: 60°;90°;120°; Asymmetric; Double Asymmetric CCT: 3000K/4000K/5000K/6000K
PF: >0.95 THD: <15%
Switch Type: Motion Sensor Switch Lumen: 2128lm-16000lm
Driver: Flicker driver / Non-flicker driver Color: White, Black
IP Rating: IP20 Light Color: Warm White, White, Cold White
Efficiency: 160lm/w Power: 14W-20W,35W-50W,70W-100W
Warranty: 5 years Lifespan: 50,000 h
Function: Sensor, Track Spot Light, Emergency Exit Light Shipping: DHL/UPS/FEDEX/TNT...
Applications: Supermarket, Warehouse, Office, Stores, Shops, Commercial and Industrial Projects...



TRACK LINEAR

  • ​DETAILS
    • Phase pre-selection via adaptor, track linear can be adjusted by moving right or left
    • For Europe standard 4wires,The maximum current is 10A, allowing 60pcs of 1500mm 35w in one serial row 220VAC power supply
    • For America standard 3wires,The maximum current is 10A, allowing 30pcs of 1500mm 35w in one serial row 100VAC power supply
    • Flexible change of installation position
    • Existing track rail
    • Track rail (4 wires / 3 phases) Track rail (3 wires / 1 phase)

      3 separated switchable circuits

      Adapter track box design ensures easy and intuitive fitting in the 3-phase track

      For North America Standard track spot light, there is only one circuit in the lamp.
      Linear High Bay Warehouse Lighting Linkable Seamless Linear Trunking System 0 Linear High Bay Warehouse Lighting Linkable Seamless Linear Trunking System 1

  • ADVANTAGES
    • Track Spot light can be installed in between
    • Track Linear can be used to existing track rail



LUMINAIRE

  • MULTIPLE OPTIONS

​1.​Different length with various power is available for Europe standards and North American standards.

Length
Power
L x W x H CRI
Lumen
Code No.
600mm
14W/16W/18W/20W
600x60x11mm >80Ra
2240lm-3200lm
CTL-06xx-X1X2-X3WH
600mm 14W/16W/18W/20W 600x60x11mm >90Ra 2128lm-3040lm CTL-06xx-X1X2-X3WH
1200mm
35W/40W/45W/50W
1200x60x11mm >80Ra
5600lm-8000lm
CTL-12xx-X1X2-X3WH
1500mm
35W/40W/45W/50W
1493x60x11mm >80Ra
5600lm-8000lm
CTL-15xx-X1X2-X3WH
1500mm 35W/40W/45W/50W 1493x60x11mm >90Ra 5320lm-7600lm CTL-15xx-X1X2-X3WH
2400mm
70W/80W/90W/100W
2400x60x11mm >80Ra
11200lm-16000lm
CTL-24xx-X1X2-X3WH



2.Different diffuser for different distribution

  • Narrow   60°  UGR<19
  • Wide   90°
  • Flat    120°
  • Double Asymmetric

Linear High Bay Warehouse Lighting Linkable Seamless Linear Trunking System 2

  • OPTICS

The high light efficiency of 160lm/Watt makes reduction on energy consumption and additional cost. The LEDs keeps enough margin to make sure the luminaire efficiency reach the best level.​

Linear High Bay Warehouse Lighting Linkable Seamless Linear Trunking System 3

  • APPLICATIONS

Suitable for Supermarket, Warehouse, Workshop, Office, Stores, Car Parking, Schools, Classroom, Colleges, Hotels, Conference Rooms, Factories, Commercial Purposes, Industrial Projects, Institution Buildings, Universities, Hospitals, and other Architectural places that need energy saving and high color rendering index lighting.​

Linear High Bay Warehouse Lighting Linkable Seamless Linear Trunking System 4

CUSTOMIZATION



  • Fitting color can be refinished
  • Can be supplied with 3/4 circuit track adaptor
  • Dimmable options also available by special request
  • Customization options are subject to availability and minimum order quantities



FAQ

Q1.You are manufacturer or trading company?
A: We are factory. Welcome to visit our factory at anytime.

Q2. Where is your factory?
A:Our factory located in in Shenzhen City, Guangdong Province, China.

Q3. Do you provide NEW Design led lamp OEM services?
A: Yes, we have more than 10 years rich experiences, we often cooperate with some famous foreign companies.

Q4. How to proceed an order for led light?
A: Firstly let us know your requirements or application.

Secondly, We quote according to your requirements or our suggestions.
Thirdly, customer confirms the samples and places deposit for formal order.

Fourthly, We arrange the production.

Q5. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q6. Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our products.

Q7.How does your factory do regarding quality control?
A:Quality is priority. we always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained CE,LVD,ROHS, UL, FCC, ENEC, GS, authentication.





OUR SERVICES

Designer, manufacturer of LED lighting products with superior quality. We only make top quality products integrating the most advanced LED technology. Our objective is to become a total solution provider in the LED retail and shop lighting sector.
