| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | CoreShine |
| Certification: | CE/CB/ETL/DTC/SAA/FCC/GS/UL |
| Model Number: | CTL-xxxx-X1X2-X3WH |
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | Luminaire: Size: 1549*390*210MM Gross Weight: 28.2KG Trunking rail: Size: 1700*430*142MM Gross Weight: 18.8KG 10pcs/Carton |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 25000-30000 pcs/month |
| Item: | Retail Store Led Track Linear Light | Size: | 600x60x11mm |
|---|---|---|---|
| CRI (Ra>): | 80/90 | Driver: | Flicker Driver / Non-flicker Driver |
| Power: | 14W,16W,18W,20W,40W,50,80W,100W... | PF: | >0.95 |
| IP Rating: | IP20 | Light Efficiency: | 160lm/w |
| High Light: | IP20 track lighting retail,coreshine track lighting retail,IP20 modern led track lighting |
||
600mm Linear Low Bay for Track Rail | Commercial Retail Lighting
Anti-Friction Led Linear Track Retail Lighting Fixture Low Maintenance
DESCRIPTION
CoreShine T-LINE track led linear light is an energy-efficient, low maintenance and easy to install to any track rails in the projects. Suit for Europe Standard and North America Standard.
LED linear track light is exclusively designed for designers and architects with imagination and personal style. Linear LED Shop Light Fixture 60 watts, Water Resistant, 2000-16000lm, Energy Star, White-Finish, 3000K-6000K White.
• High Efficiency: 160lm/W
• Innovative Structure Design
• Operating temperature -22C to 55°C
• Linkable for continuous runs
• Suspendant or Surface Mounting Installation
| Item: | Led Track Linear Retai Lighting System | |||||
| Series: | T-Line | Input Voltage: | AC220-240VAC/100-277VAC | |||
| Length: | 600mm,1200mm,1500mm,2400mm | Light Source: | Smd2835 (Everlight/Samsung) | |||
| Trunking: | 600mm,1000mm,1200mm,1500mm,2000mm,2400mm, 3000mm,4000mm | Material: | Aluminum Alloy + PMMA lens / PC cover | |||
| UGR: | <19 | CRI (Ra>): | 80/90/95 | |||
| Beam Angle: | 60°;90°;120°; Asymmetric; Double Asymmetric | CCT: | 3000K/4000K/5000K/6000K | |||
| PF: | >0.95 | THD: | <15% | |||
| Function: | Sensor, Track Spot Light, Emergency Exit Light | Lumen: | 2128lm-16000lm | |||
| Driver: | Flicker driver / Non-flicker driver | Color: | White, Black | |||
| IP Rating: | IP20 | Light Color: | Warm White, White, Cold White | |||
| Efficiency: | 160lm/w | Power: | 14W-20W,35W-50W,70W-100W | |||
| Warranty: | 5 years | Lifespan: | 50,000 h | |||
| Switch Type: | Motion Sensor Switch | Shipping: | DHL/UPS/FEDEX/TNT... | |||
| Applications: | Supermarket, Warehouse, Office, Stores, Shops, Commercial and Industrial Projects... | |||||
TRACK LINEAR
| Track rail (4 wires / 3 phases) | Track rail (3 wires / 1 phase) |
|

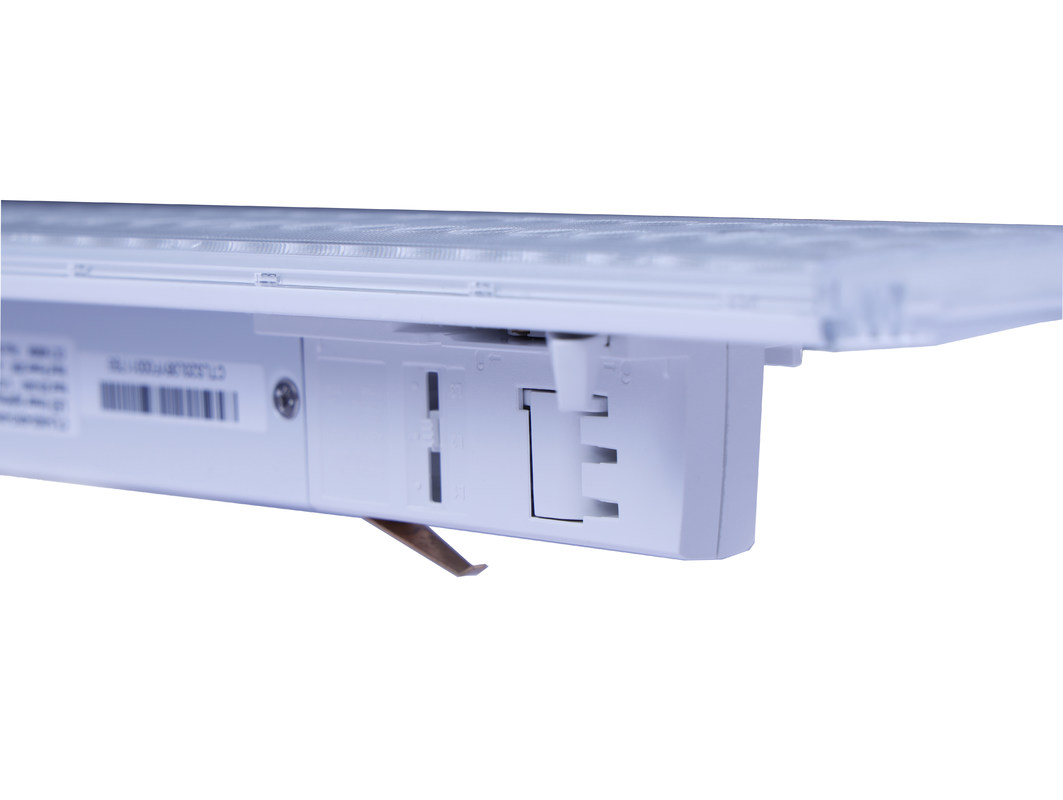

3 separated switchable circuits Adapter track box design ensures easy and intuitive fitting in the 3-phase track |
For North America Standard track spot light, there is only one circuit in the lamp. |
 |
|
LUMINAIRE
1.Different length with various power is available for Europe standards and North American standards.
|
Length
|
Power
|
L x W x H | CRI |
Lumen
|
Code No.
|
|
600mm
|
14W/16W/18W/20W
|
600x60x11mm | >80Ra |
2240lm-3200lm
|
CTL-06xx-X1X2-X3WH
|
| 600mm | 14W/16W/18W/20W | 600x60x11mm | >90Ra | 2128lm-3040lm | CTL-06xx-X1X2-X3WH |
|
1200mm
|
35W/40W/45W/50W
|
1200x60x11mm | >80Ra |
5600lm-8000lm
|
CTL-12xx-X1X2-X3WH
|
|
1500mm
|
35W/40W/45W/50W
|
1493x60x11mm | >80Ra |
5600lm-8000lm
|
CTL-15xx-X1X2-X3WH
|
| 1500mm | 35W/40W/45W/50W | 1493x60x11mm | >90Ra | 5320lm-7600lm | CTL-15xx-X1X2-X3WH |
|
2400mm
|
70W/80W/90W/100W
|
2400x60x11mm | >80Ra |
11200lm-16000lm
|
CTL-24xx-X1X2-X3WH
|
2.Different diffuser for different distribution
The high light efficiency of 160lm/Watt makes reduction on energy consumption and additional cost. The LEDs keeps enough margin to make sure the luminaire efficiency reach the best level.
FAQ
Q1: Can I have a sample for this color?
A: Yes, we welcome sample order to test and check quality. Mixed sample are acceptable.
Q2: What about the lead time?
A: Samples needs 3-5 days, mass production time needs 1-2 weeks for order quality.
Q3: Do you have any MOQ limit?
A: Low MOQ, 1pcs for sample checking is available.
Q4: How do you ship and how long does it take to arrive?
A: We usually ship by UPS, FedEx or TNT for small order. I t usually takes 5-7 working days to arrive. Airline and sea shipping also optional for bigger order.
Q5: How to proceed an order?
Q6: Is it OK to print my logo on this light?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for this led linear light?
A: Yes, we offer 5 years warranty.
Q8: How to deal with the faulty?
A: Firstly, our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For detective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
