| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | CoreShine |
| Certification: | UL, LVD, CE, ENEC, TUV, SAA, C-TICK, CB, GS, VDE, ETL |
| Model Number: | CUL-24120-X1X2-X3WH |
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | one set in one box (1678*170*92mm) |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 25000-30000 pcs/month |
| Length: | 2400mm | Power: | 120W |
|---|---|---|---|
| CRI (Ra>): | 80 | Lumen: | 16000lm |
| UGR: | <19 | Beam Angle: | 60°;120° |
| Lens: | NR(Narrow), NU(Narrow Uplighting), FD(Flood), FU(Flood Uplighting) | Application: | Office,Library,Supermarket,Warehouse,Workshop,etc. |
| High Light: | 7.87feets indirect led lighting fixtures,16000lm indirect led lighting fixtures,16000lm linear pendant light fixture |
||

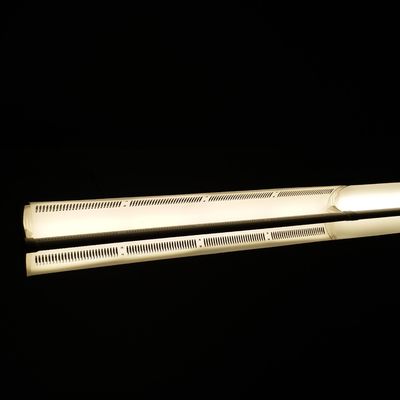

High Lumen Led Linear Indirect Lighting with Emergency Driver 2400mm 120w 16000lm
DESCRIPTION
In a combination with our various aluminum profile housing and latest energy-saving technology, you will get any desirable led linear light to decelerate your shopping mall, office, clothing market, etc.
Led Linear Lighting Emergency Solution
Thanks to the preset 8-wire & 12 wire trunking rail, emergency lighting can be well integrated into standard lighting. With two independent emergency lighting circuits and a self-contained emergency driver & battery, Coreshine's LED Linear Lighting System can provide full or reduced power in the event of power failure, General lighting combines with automatic emergency lighting into one integrative lighting solution. You can easy to work out the emergency lighting solution with this system.
Trunking Rail
· Trunking rail as standard with 5, 8 or 12-core through-wiring with 2.5mm²cable for power supply and 1.5mm² cable for dimming control.
· The maximum current is 16A, allowing 70pcs of 1500mm 45W in one serial row 220VAC power supply,up to 100 meters.
Emergency Lighting Function
· It can work on normal mains and automatically switch to emergency supply in the event of a power failure to provide sufficient light and ensure safe evacuation in emergency situations.
· A wide variety of self contained battery is available, as well as two independent emergency lighting circuits in the trunking.
Uplighting
Directs 10% of the light upward to the ceiling and 90% reflected onto the floor, with or without uplighting is available
Beam Angle
Unique reflective design, two different reflector face forms two kinds of reflection angle
Length Options
|
Length
|
H x W x L(mm) |
Power
|
Lumen
|
Code No.
|
|
1200mm
|
185x236x1205 |
30W
|
4800lm
|
CUL-1230-X1X2-X3WH
|
|
1200mm
|
185x236x1205 |
40W
|
6400lm
|
CUL-1240-X1X2-X3WH
|
|
1200mm
|
185x236x1205 |
60W
|
9600lm
|
CUL-1260-X1X2-X3WH
|
|
1500mm
|
185x236x1503 |
35W
|
5600lm
|
CUL-1535-X1X2-X3WH
|
|
1500mm
|
185x236x1503 |
50W
|
8000lm
|
CUL-1550-X1X2-X3WH
|
|
1500mm
|
185x236x1503 |
70W
|
11200lm
|
CUL-1570-X1X2-X3WH
|
|
2400mm
|
185x236x2406 |
60W
|
9600lm
|
CUL-2460-X1X2-X3WH
|
|
2400mm
|
185x236x2406 |
80W
|
12800lm
|
CUL-2480-X1X2-X3WH
|
|
2400mm
|
185x236x2406 |
120W
|
19600lm
|
CUL-24120-X1X2-X3WH
|
| Item: | Led Linear Light Trunking System with Emergency Driver | |||||
| Style: | U-Line | Material: | Aluminum Alloy + PMMA lens / PC cover | |||
| Length: | 1200mm, 1500mm, 2400mm | Light Source: | Smd2835 (Everlight/Samsung) | |||
| Trunking: | 600mm, 1200mm, 1500mm, 2400mm, 3000mm | Input Voltage: | AC220-240VAC/100-277VAC | |||
| UGR: | <19 | CRI (Ra>): | 80/95 | |||
| Beam Angle: | 60°;120°; Asymmetric; Double Asymmetric | CCT: | 3000K/4000K/5000K/6000K | |||
| PF: | >0.95 | THD: | <15% | |||
| Lumen: | 4000lm-16000lm | Dimming: | DALI, 1-10V, DIMswitch | |||
| Driver: | Coreshine/Rubycon | Color: | White Housing | |||
| IP Rating: | IP20 | Light Color: | Warm White, White, Cold White | |||
| Efficiency: | 135lm/w-150lm/w | Power: | 35W,50W,65W,70W,100W,150W... | |||
| Warranty: | 5 years | Lifespan: | 50000 hours | |||
| Installation | Chain, Cord, Rod, Surface Mounted | Connector | L/T/X Node Connector can be choose | |||
| Function | Dimmable (DALI/1-10V), Emergency, Sensor, Track Spot Light | |||||
| Switch Type: | Motion Sensor Switch Optional | Shipping: | DHL/UPS/FEDEX/TNT... | |||
| Applications: | Office, Supermarket, Warehouse, Stores, Shops, Commercial and Industrial Projects... | |||||
Q:Do you have a factory ?
A:Yes,we are the top professional manufacture for this product.
Q:Do you have patent for this product?
A:Yes,we have patent in appearance design and function design.
Q:What is the maximum power in one line?
A:3500W
Q:Can it be DALI or 1-10V dimming?
A:Yes,it can be DALI dimming or 1-10V dimming or DIM switch.
2.Take photos of the goods during production and send them to customers.
3.Take pictures of goods after packaging and labeling and send them to customers.
4.Take photos of goods loading before shipment, and arrange the customs clearance information of goods and send them to the customers.
5.We will track the logistics information and update it to the customer at any time if the goods are delivered by express.
6.We will remind the customer to prepare the customs clearance documents for the goods before they arrive at the port.
1.Raw material 100% check before production.
2.Order must have a first sample and full check before manufacturing process.
3.100% check before aging.
4.24 hours aging with 500 times on off testing.
5.100% final inspection before packing
