| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | CoreShine |
| Certification: | UL, LVD, CE, ENEC, TUV, SAA, C-TICK, CB, GS, VDE, ETL |
| Model Number: | CUL-xxxx-X1X2-X3WH |
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | one set in one box (1678*170*92mm) |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 25000-30000 pcs/month |
| Material: | Stainless Steel + PMMA Lens/PC Cover | Power: | 30W, 35W, 45W, 50W, 60W, 70W, 90W, 120W |
|---|---|---|---|
| Beam Angle: | 60°;120° | Dimming: | DALI, 1-10V, DIMswitch |
| Light Color: | Warm White, White, Cold White | IP Rating: | IP20 |
| Light Efficiency: | 150lm/W | Application: | Office,Library,Supermarket,Warehouse,Workshop,etc. |
| High Light: | 150lm/W emergency light fixtures,UGR19 emergency light fixtures,UGR19 ceiling mounted emergency lights |
||
School Led Emergency Linear Light Fitting UGR<19 Indirect Warm White
DESCRIPTION
Coreshine U-LINE LED linear light the latest new led trunking linear system, it is divided into 2parts-the aluminum trunking rail and the linear lighting module, easy to install and maintain. It is pre-mounted with 5/8/12 wires, with 3 phase and 4 wires electronic circuit design, can work at the continuous run 250m. It is widely used for supermarkets, warehouses, workshops, fairs, and so on.
Emergency lighting systems ensures optimum lighting and orientation, even in the event of a power failure. General lighting and emergency lighting are combined in a single highly functional, integrative lighting solution.
Different emergency solutions for you choose
1. Central battery systems / Generator
EL1 EN1 & EL2 EN2 makes mode selected
2. Self contained battery
Under this mode, the luminaires could be 6W or 12W, working for 1.5 hours or 3 hours (depending on the demand selected in advance)
Ni-MH battery we used is high temperature resistant, which can make sure its life time to be longer.
Trunking Rail
· Trunking rail as standard with 5, 8 or 12-core through-wiring with 2.5mm²cable for power supply and 1.5mm² cable for dimming control.
· The maximum current is 16A, allowing 70pcs of 1500mm 45W in one serial row 220VAC power supply,up to 100 meters.
Emergency Lighting Function
· It can work on normal mains and automatically switch to emergency supply in the event of a power failure to provide sufficient light and ensure safe evacuation in emergency situations.
· A wide variety of self contained battery is available, as well as two independent emergency lighting circuits in the trunking.

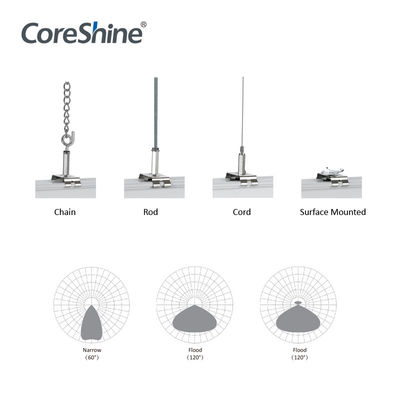

Installation
· Chain Installation
· Cord Installation
· Rod Installation
· Surface Mounted
. Mounting Clip
Install to trunking rail where there is no requirement of luminaire .
At each of the blank cover there is a stopper to prevent the lights from being emmited.
Uplighting
Directs 10% of the light upward to the ceiling and 90% reflected onto the floor, with or without uplighting is available
Length Options
Different length with various power is available
Europe standards and North American standards
|
Length
|
H x W x L(mm) |
Power
|
Lumen
|
Code No.
|
|
1200mm
|
185x236x1205 |
30W
|
4800lm
|
CUL-1230-X1X2-X3WH
|
|
1200mm
|
185x236x1205 |
40W
|
6400lm
|
CUL-1240-X1X2-X3WH
|
|
1200mm
|
185x236x1205 |
60W
|
9600lm
|
CUL-1260-X1X2-X3WH
|
|
1500mm
|
185x236x1503 |
35W
|
5600lm
|
CUL-1535-X1X2-X3WH
|
|
1500mm
|
185x236x1503 |
50W
|
8000lm
|
CUL-1550-X1X2-X3WH
|
|
1500mm
|
185x236x1503 |
70W
|
11200lm
|
CUL-1570-X1X2-X3WH
|
|
2400mm
|
185x236x2406 |
60W
|
9600lm
|
CUL-2460-X1X2-X3WH
|
|
2400mm
|
185x236x2406 |
80W
|
12800lm
|
CUL-2480-X1X2-X3WH
|
|
2400mm
|
185x236x2406 |
120W
|
19600lm
|
CUL-24120-X1X2-X3WH
|
| Item: | Led Linear Light Trunking System | |||||
| Style: | U-Line | Material: | Aluminum Alloy + PMMA lens / PC cover | |||
| Length: | 1200mm, 1500mm, 2400mm | Light Source: | Smd2835 (Everlight/Samsung) | |||
| Trunking: | 600mm, 1200mm, 1500mm, 2400mm, 3000mm | Input Voltage: | AC220-240VAC/100-277VAC | |||
| UGR: | <19 | CRI (Ra>): | 80/95 | |||
| Beam Angle: | 60°;120°; Asymmetric; Double Asymmetric | CCT: | 3000K/4000K/5000K/6000K | |||
| PF: | >0.95 | THD: | <15% | |||
| Lumen: | 4000lm-16000lm | Dimming: | DALI, 1-10V, DIMswitch | |||
| Driver: | Coreshine/Rubycon | Color: | White Housing | |||
| IP Rating: | IP20 | Light Color: | Warm White, White, Cold White | |||
| Efficiency: | 135lm/w-150lm/w | Power: | 35W,50W,65W,70W,100W,150W... | |||
| Warranty: | 5 years | Lifespan: | 50000 hours | |||
| Installation | Chain, Cord, Rod, Surface Mounted | Connector | L/T/X Node Connector can be choose | |||
| Function | Dimmable (DALI/1-10V), Emergency, Sensor, Track Spot Light | |||||
| Switch Type: | Motion Sensor Switch Optional | Shipping: | DHL/UPS/FEDEX/TNT... | |||
| Applications: | Office, Supermarket, Warehouse, Stores, Shops, Commercial and Industrial Projects... | |||||
Warehouse / Factory / Workshop
Hotel / Hospital / Supermarket
Conference / Meeting room / Factory / Office
Residential Home / Institution Building
School / College / University
Church / Theater / Sport Area
Q:Do you have a factory ?
A:Yes,we are the top professional manufacture for this product.
Q:Do you have patent for this product?
A:Yes,we have patent in appearance design and function design.
Q:What is the maximum power in one line?
A:3500W
Q:Can it be DALI or 1-10V dimming?
A:Yes,it can be DALI dimming or 1-10V dimming or DIM switch.
