| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | CoreShine |
| Certification: | UL, LVD, CE, ENEC, TUV, SAA, C-TICK, CB, GS, VDE, ETL |
| Model Number: | CUL-xxxx-X1X2-X3WH |
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | one set in one box (1678*170*92mm) |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 25000-30000 pcs/month |
| UGR: | <19 | Lens: | NR(Narrow), NU(Narrow Uplighting), FD(Flood), FU(Flood Uplighting) |
|---|---|---|---|
| CCT: | 3000K/4000K/5000K/6000K | Color: | White |
| CRI: | 80 | Light Efficiency: | 135lm/W-150lm/W |
| Warranty: | 5 Years | Lifespan (hours): | 50000 |
| High Light: | coreshine linear pendant light fixture,5000K linear pendant light fixture,5000K emergency light fixtures |
||

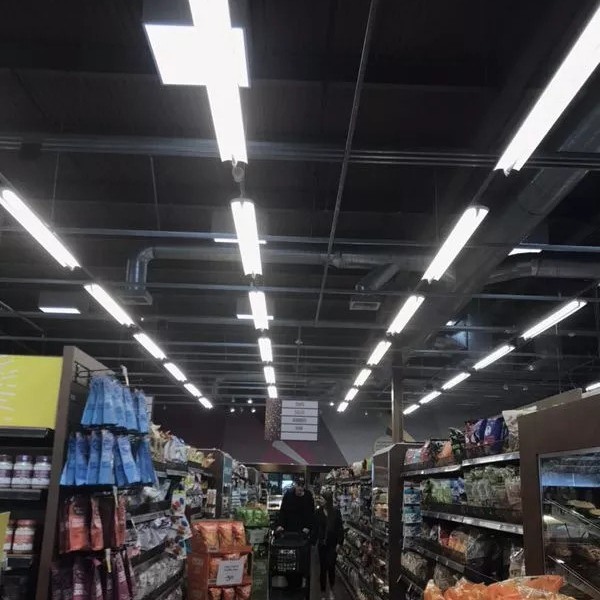

Modular Emergency Linear Light with Internal Battery | Supermarket Lighting
Supermarket Pendant Indirect Led Emergency Linear Light Fixtures IP20
DESCRIPTION
Coreshine Linear Trunking System U-LINE series is not a simple light, it is an integrated lighting solution. With its advantages of indirect diffuser, energy-efficiency, low maintenance costs and convenient installation, it is an ideal alternative to traditional linear fluorescent lights in a variety of industrial and commercial applications. Lighting System is a modular concept consisting of trunking rails, luminaire inserts and accessories.
Emergency lighting systems ensures optimum lighting and orientation, even in the event of a power failure. General lighting and emergency lighting are combined in a single highly functional, integrative lighting solution.
External Emergency Power Supply Model
In the external emergency supply model, no emergency driver and battery is in the luminaire. Two independent emergency supply - EL1/EN1, EL2/EN2 - in the trunking can be opted for connecting luminaire to the generator or central battery for emergency supply. Each luminaire can be either connected to generator or central battery. Different lamps in one circuit can be opted for generator supply or central battery supply if it is available and necessary.
When power cuts, emergency supply - EL1/EN1, EL2/EN2 direct connect to generator or central battery. Luminaire lights on for 100% brightness in this case.
Internal Emergency Power Supply Model
In the internal emergency supply model, the emergency power supply is from the emergency driver and built-in battery.
When power cuts, CHR circuit can detect and automatically switch to the emergency driver and built-in battery supply model. Emergency driver is charging for built-in battery, Luminaire lights on with reduced power 6W(CSSD-E1) or 12W(CSSD-E2) under battery operation. There are two options for battery 1800Ah (CSSB1) and 3600mAh (CSSB2) battery. There are two emergency lighting models by battery supply as below.
Dimming & Multi-Sensor System
· 3 different dimming system, DALI, 0-10V and DIMswitch
· It does not only have an integrated microwave sensor for movement detection, but also a daylight sensor.
Trunking Rail
· Trunking rail as standard with 5, 8 or 12-core through-wiring with 2.5mm²cable for power supply and 1.5mm² cable for dimming control.
· The maximum current is 16A, allowing 70pcs of 1500mm 45W in one serial row 220VAC power supply,up to 100 meters.
Emergency Lighting Function
· It can work on normal mains and automatically switch to emergency supply in the event of a power failure to provide sufficient light and ensure safe evacuation in emergency situations.
· A wide variety of self-contained battery is available, as well as two independent emergency lighting circuits in the trunking.
Install to trunking rail where there is no requirement of luminaire .
At each of the blank cover there is a stopper to prevent the lights from being emmited.
Uplighting
Directs 10% of the light upward to the celling and 90% reflected onto the floor ,with or without uplighting is available
Beam Angle
Unique reflective design, two different reflector face forms two kinds of reflection angle
Length Options
Different length with various power is available
Europe standards and North American standards
| Item: | Led Emergency Linear Light Trunking System | |||||
| Style: | U-Line | Material: | Stainless Steel + PMMA lens / PC cover | |||
| Length: | 1200mm, 1500mm, 2400mm | Light Source: | Smd2835 (Everlight/Samsung) | |||
| Trunking: | 600mm, 1200mm, 1500mm, 2400mm, 3000mm | Input Voltage: | AC220-240VAC/100-277VAC | |||
| UGR: | <19 | CRI (Ra>): | 80/95 | |||
| Beam Angle: | 60°;120°; Asymmetric; Double Asymmetric | CCT: | 3000K/4000K/5000K/6000K | |||
| PF: | >0.95 | THD: | <15% | |||
| Lumen: | 4000lm-16000lm | Dimming: | DALI, 1-10V, DIMswitch | |||
| Driver: | Coreshine/Rubycon | Color: | White Housing | |||
| IP Rating: | IP20 | Light Color: | Warm White, White, Cold White | |||
| Efficiency: | 135lm/w-150lm/w | Power: | 35W,50W,65W,70W,100W,150W... | |||
| Warranty: | 5 years | Lifespan: | 50000 hours | |||
| Installation | Chain, Cord, Rod, Surface Mounted | Connector | L/T/X Node Connector can be choose | |||
| Function | Dimmable (DALI/1-10V), Emergency, Sensor, Track Spot Light | |||||
| Switch Type: | Motion Sensor Switch Optional | Shipping: | DHL/UPS/FEDEX/TNT... | |||
| Applications: | Office, Supermarket, Warehouse, Stores, Shops, Commercial and Industrial Projects... | |||||
Suitable for Supermarket, Warehouse, Workshop, Office, Stores, Car Parking, Schools, Classroom, Colleges, Hotels, Conference Rooms, Factories, Commercial Purposes, Industrial Projects, Institution Buildings, Universities, Hospitals, and other Architectural places that need energy saving and high color rendering index lighting.
Q:Do you have a factory ?
A:Yes,we are the top professional manufacture for this product.
Q:Do you have patent for this product?
A:Yes,we have patent in appearance design and function design.
Q:What is the maximum power in one line?
A:3500W
Q:Can it be DALI or 1-10V dimming?
A:Yes,it can be DALI dimming or 1-10V dimming or DIM switch.
2.Take photos of the goods during production and send them to customers.
3.Take pictures of goods after packaging and labeling and send them to customers.
4.Take photos of goods loading before shipment, and arrange the customs clearance information of goods and send them to the customers.
5.We will track the logistics information and update it to the customer at any time if the goods are delivered by express.
6.We will remind the customer to prepare the customs clearance documents for the goods before they arrive at the port.
Save energy:
Energy saving, saving 65% than the traditional lights at the same brightness.
Lower glare:
Unique double parabolic grille designed according to the principle of optics, it can effectively prevent and eliminate all kinds of glare, and it is not easy for eyes to produce visual fatigue for long time.
Easy to be installed:
The light is easy to be installed by stainess hung wire or hung cable.
Long life:
It has a certain distance between the LED SMD and the diffuser. The heat dissipation provides enough space to ensure the long life of the light. The light life has more than 50000hrs.
