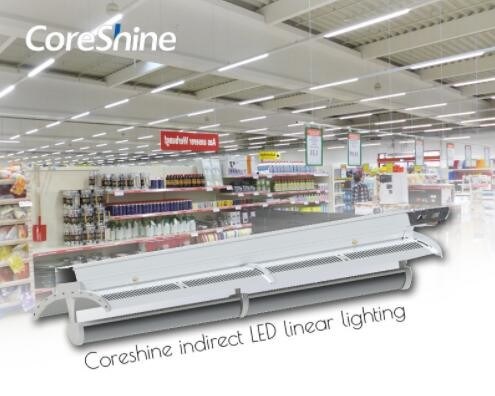

Stainless Steel Indirect LED Ceiling Lighting U LINE Aluminum Profile Cover

Basic Information
Place of Origin: Guangdong, China
Brand Name: CoreShine
Certification: UL, LVD, CE, ENEC, TUV, SAA, C-TICK, CB, GS, VDE, ETL
Model Number: CUL-xxxx-X1X2-X3WH
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: one set in one box (1678*170*92mm)
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 25000-30000 pcs/month
Detail Information
Material: Stainless Steel Length: 1.2m, 1.5m, 2.4m
Power: 30W, 35W, 45W, 50W, 60W, 70W, 100W, 120W UGR: <19
Beam Angle: 60°;120° Lens: NR(Narrow), NU(Narrow Uplighting), FD(Flood), FU(Flood Uplighting)
Dimming: DALI, 0-10V, DIMswitch Application: Office,Library,Supermarket,Warehouse,Workshop,etc.
High Light:

Stainless Steel Indirect LED Ceiling Lighting

,

Indirect LED Ceiling Lighting 1.2m

,

Aluminum Profile Indirect Lighting Ceiling


Product Description

Linear Indirect Lighting with Comfortable Indirect Luminaire for Supermarket



Stainless Steel Led Linear Indirect Reflection Lighting Up and Down



DESCRIPTION

Coreshine U-LINE is an INDIRECT LIGHTING DIFFUSER, PRO-LINEAR, LED LINEAR TRUNKING SYSTEM MODULAR SUPERMARKET LIGHTS, multiple Beam Angle, Switch built-in luminaire, easy and convenient for installation and maintenance. it is an ideal alternative to traditional linear fluorescent lights in a variety of industrial and commercial applications.

Lighting System is a modular concept consisting of trunking rails, luminaire inserts and accessories.



1. High quality led aluminum profile help strip to dissipate heat, make led enjoy a longer lifetime and less brightness decline

2. Nice led aluminum profile make led strip lighting more elegant

3. Prevent against dust, IP20 led aluminum profile, better price

4. LED aluminum profile's diffuse cover can help you get different light effect

6. Different length according to your requirements

7. Led light bar with indirect lighting design, UGR<19, can protect eyes


PRODUCT DETAILS

Dimming & Multi-Sensor System

· 3 different dimming system, DALI, 0-10V and DIMswitch

· It does not only have an integrated microwave sensor for movement detection, but also a daylight sensor.



Trunking Rail

· Trunking rail as standard with 5, 8 or 12-core through-wiring with 2.5mm²cable for power supply and 1.5mm² cable for dimming control.

· The maximum current is 16A, allowing 70pcs of 1500mm 45W in one serial row 220VAC power supply,up to 100 meters.



Emergency Lighting Function

· It can work on normal mains and automatically switch to emergency supply in the event of a power failure to provide sufficient light and ensure safe evacuation in emergency situations.

· A wide variety of self-contained battery is available, as well as two independent emergency lighting circuits in the trunking.



Installation

· Pendant Chain Installation

· Pendant Cord Installation

· Pendant Rod Installation

· Surface Mounted

. Mounting Clip



Node Connector

· L, T and X Standard Module Node connectors

· Each node connector has diverse of electrical feed-in and feed-out



135-150lm/W
The high lumens efficiency of 135~150 lm per Watt makes reduction on energy consumption and additional cost. The LEDs keeps enough margin to make sure the luminaire efficiency reach the best level.

Blank Cover

Install to trunking rail where there is no requirement of luminaire.

At each of the blank cover, there is a stopper to prevent the lights from being emitted.



Uplighting

Directs 10% of the light upward to the ceiling and 90% reflected onto the floor, with or without uplighting is available



Length Options

Different length with various power is available

Europe standards and North American standards



  North American Standard European Standard
Options

·1200mm

30W 4000lm / 45W 6000lm / 60W 8000lm

·2400mm

60W 8000lm/ 90W 12000lm/ 120W 16000lm

. Flicker/non-flicker driver optional

. 0-10V driver optional

. 1500mm

35W 5000lm/ 50W 7000lm/ 70W 10000lm

. 2400mm

70W 10000lm / 120W 17000lm

. Flicker/non-flicker driver optional

. Dali/1-10V/standard driver optional

Description

Electrical Characteristics | 0-10V Dimming Driver | 30W/45W/60W

Length : 2400MM

Constant current LED driver

Life time:50,000h

5 years warranty

Electrical Characteristics | Output Selectable Driver | 50W/70W

Length : 1500MM

Constant current LED driver

Life time: 50,000h

5 year warranty

Properties

High efficiency >=88%

Over voltage protection with automatic restart

Overload protection

Short-circuit protection with automatic restart

Surge voltage: 2.5KV

High efficiency >=90%

Over voltage protection with automatic restart

Overload protection

Short-circuit protection with automatic restart

Surge voltage: 2.5KV


SPECIFICATIONS
Item: Led Linear Light Trunking System
Style: U-Line Material: Stainless Steel + PMMA lens / PC cover
Length: 1200mm, 1500mm, 2400mm Light Source: Smd2835 (Everlight/Samsung)
Trunking: 600mm, 1200mm, 1500mm, 2400mm, 3000mm Input Voltage: AC220-240VAC/100-277VAC
UGR: <19 CRI (Ra>): 80/95
Beam Angle: 60°;120°; Asymmetric; Double Asymmetric CCT: 3000K/4000K/5000K/6000K
PF: >0.95 THD: <15%
Lumen: 4000lm-16000lm Dimming: DALI, 1-10V, DIMswitch
Driver: Coreshine/Rubycon Color: White Housing
IP Rating: IP20 Light Color: Warm White, White, Cold White
Efficiency: 135lm/w-150lm/w Power: 35W,50W,65W,70W,100W,150W...
Warranty: 5 years Lifespan: 50000 hours
Installation Chain, Cord, Rod, Surface Mounted Connector L/T/X Node Connector can be choose
Function Dimmable (DALI/1-10V), Emergency, Sensor, Track Spot Light
Switch Type: Motion Sensor Switch Optional Shipping: DHL/UPS/FEDEX/TNT...
Applications: Office, Supermarket, Warehouse, Stores, Shops, Commercial and Industrial Projects...

FEATURES

• Innovative Structure Design

• Operating temperature -22C to 65°C

• Linkable for continuous runs


APPLICATIONS
  • Warehouse / Factory / Workshop

  • Hotel / Hospital / Supermarket

  • Conference / Meeting room / Factory / Office

  • Residential Home / Institution Building

  • School / College / University

  • Church / Theater / Sport Area

FAQ

Q1. Can I have a sample order?
A: Yes.
Q2. What's the lead time?
A: Sample 3-5 days, mass order 15-30 days.
Q3. MOQ?
A: 1pc available.
Q4. Payment way?
A: TT, Paypal, West Union, Pay online, Visa, Alibaba Pay later, Trade assurance. L/C.
Q5. Logo customize?
A: Yes.
Q6. What's the guarantee?
A: 5 years warranty free after-sales service.
Q7: How long is our aging test?
A: At least 24 hours aging test on 100% complete Lighting Fixture, 48 hours aging test on the first batch of order.

Because lighting fixtures delivered without aging put customers at risk of faulty LED products. Aging test process is treat seriously in
our company.
