UGR19 Warehouse Lighting LED , IP20 High Bay LED Shop Lights

Basic Information
Place of Origin: Guangdong, China
Brand Name: CoreShine
Certification: UL, LVD, CE, ENEC, TUV, SAA, C-TICK, CB, GS, VDE, ETL
Model Number: CUL-xxxx-X1X2-X3WH
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: one set in one box (1678*170*92mm)
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 25000-30000 pcs/month
Detail Information
Length: 1200mm, 1500mm, 2400mm Power: 30W, 60W, 70W, 90W, 120W
CRI (Ra>): 80/95 Lens: NR(Narrow), NU(Narrow Uplighting), FD(Flood), FU(Flood Uplighting)
Dimming: DALI, 1-10V, DIMswitch Options Light Color: Warm White, White, Cold White
Light Efficiency: 135-150lm/W Working Temperature: -20 - 65 ℃
High Light:

IP20 warehouse lighting led

,

UGR19 warehouse lighting led

,

IP20 high bay led shop lights


Product Description

Customized IP20 Warehouse Lighting High Bay Shop Light UGR<19



Indirect Led Linear Warehouse Lighting System in Continous Row



DESCRIPTION

Coreshine U-LINE A continuous-row LED lighting system U-LINE could be created only by a trunking unit and a LED luminaire. It appears as a consistent continuous-row system, without any visual interruption or different reflectors. The luminaire and trunking are perfectly matched to each other as array dimmable linkable LED linear lights.

With a color rendering index of Ra>80, color temperatures of 3000k, 4000k, 5000k and 6000k, and low UGR, it could meet environmental requirements and comply with funding guidelines for energy-efficient building and lighting solutions.



• Innovative Structure Design

• Operating temperature -22C to 65°C

• Linkable for continuous runs

• Suspendant or Surface Mounting Installation




DETAILS

Dimming & Multi-Sensor System

· 3 different dimming system, DALI, 0-10V and DIMswitch

· It does not only have an integrated microwave sensor for movement detection, but also a daylight sensor.



Trunking Rail

· Trunking rail as standard with 5, 8 or 12-core through-wiring with 2.5mm²cable for power supply and 1.5mm² cable for dimming control.

· The maximum current is 16A, allowing 70pcs of 1500mm 45W in one serial row 220VAC power supply,up to 100 meters.



Emergency Lighting Function

· It can work on normal mains and automatically switch to emergency supply in the event of a power failure to provide sufficient light and ensure safe evacuation in emergency situations.

· A wide variety of self-contained battery is available, as well as two independent emergency lighting circuits in the trunking.



135-150lm/W
The high lumens efficiency of 135~150 lm per Watt makes reduction on energy consumption and additional cost. The LEDs keeps enough margin to make sure the luminaire efficiency reach the best level.

Blank Cover

Install to trunking rail where there is no requirement of luminaire.

At each of the blank cover there is a stopper to prevent the lights from being emmited.



Uplighting

Directs 10% of the light upward to the ceiling and 90% reflected onto the floor, with or without uplighting is available



Length Options

Different length with various power is available

Europe standards and North American standards

Length
H x W x L(mm)
Power
Lumen
Code No.
1200mm
185x236x1205
30W
4800lm
CUL-1230-X1X2-X3WH
1200mm
185x236x1205
40W
6400lm
CUL-1240-X1X2-X3WH
1200mm
185x236x1205
60W
9600lm
CUL-1260-X1X2-X3WH
1500mm
185x236x1503
35W
5600lm
CUL-1535-X1X2-X3WH
1500mm
185x236x1503
50W
8000lm
CUL-1550-X1X2-X3WH
1500mm
185x236x1503
70W
11200lm
CUL-1570-X1X2-X3WH
2400mm
185x236x2406
60W
9600lm
CUL-2460-X1X2-X3WH
2400mm
185x236x2406
80W
12800lm
CUL-2480-X1X2-X3WH
2400mm
185x236x2406
120W
19600lm
CUL-24120-X1X2-X3WH



SPECIFICATIONS
Item: Warehouse Led Linear Light Trunking System
Style: U-Line Material: Aluminum Alloy + PMMA lens / PC cover
Length: 1200mm, 1500mm, 2400mm Light Source: Smd2835 (Everlight/Samsung)
Trunking: 600mm, 1200mm, 1500mm, 2400mm, 3000mm Input Voltage: AC220-240VAC/100-277VAC
UGR: <19 CRI (Ra>): 80/95

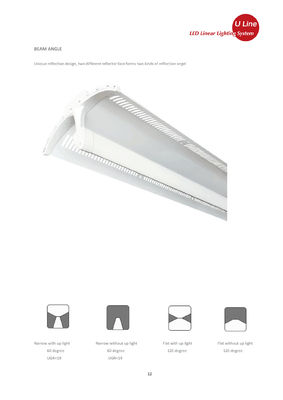

Beam Angle: 60°;120°; Asymmetric; Double Asymmetric CCT: 3000K/4000K/5000K/6000K
PF: >0.95 THD: <15%
Lumen: 4000lm-16000lm Dimming: DALI, 1-10V, DIMswitch
Driver: Coreshine/Rubycon Color: White Housing
IP Rating: IP20 Light Color: Warm White, White, Cold White
Efficiency: 135lm/w-150lm/w Power: 35W,50W,65W,70W,100W,150W...
Warranty: 5 years Lifespan: 50000 hours
Installation Chain, Cord, Rod, Surface Mounted Connector L/T/X Node Connector can be choose
Function Dimmable (DALI/1-10V), Emergency, Sensor, Track Spot Light
Switch Type: Motion Sensor Switch Optional Shipping: DHL/UPS/FEDEX/TNT...
Applications: Office, Supermarket, Warehouse, Stores, Shops, Commercial and Industrial Projects...

APPLICATIONS
  • Store, plaza, mall, supermarket and warehouse etc.
  • Counter, display window, show room and museum lighting.
  • School, hospital, office, meeting room, residential area lighting.
  • Bar, restaurant, hotel bedroom, dining room, hall and lobby lighting.
  • Other indoor occasions.

FAQ

1. Are you a factory or trading company?
We are a factory, we provide ODM& OEM services.
2. What is your main product line is made?
We mainly produce led lights and lighting fixtures.Focus on commercial and industrial lighting.(led linear light, led track light etc.)
3. You have the ability to do independent research and development?
Our engineering department has 11 staffs, we have the R&D ability to make our products competitive. We also collect regularly customer feedback, products improvement and new product requirement. We also hold monthly new product launches.
4. What certificates you have?
Our products have passed CE, RoHS, EMC, UL, SAA, FCC, ENEC and GS...
5. What is your production capacity?
200,000-300,000pcs per month
6. What is the warranty?
Most of our products are 5 years warranty.



OUR SERVICES

1. Your inquiry related to our products or prices will be replied in 24hours.

2. Well-trained and experienced staffs to answer all your esquires in fluent English
3. OEM&ODM, any your customized lightings we can help you to design and put into product.
If you have any questions about our led strip profile aluminum, Pls don't hesitate to contact us!



ADVANTAGES
  • We have unique professional R&D, production, quality control teams
  • Plentiful experience in LED market to provide OEM/ODM
  • With imported advanced machine for LED
  • Encapsulation, SMD and reflow soldering
  • Integrated QC system is implemented in every aspect of production



PICTURES

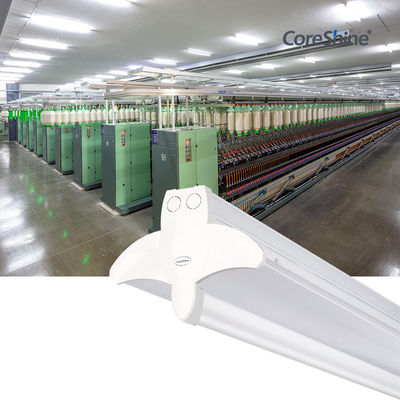

UGR19 Warehouse Lighting LED , IP20 High Bay LED Shop Lights 0
UGR19 Warehouse Lighting LED , IP20 High Bay LED Shop Lights 1UGR19 Warehouse Lighting LED , IP20 High Bay LED Shop Lights 2
