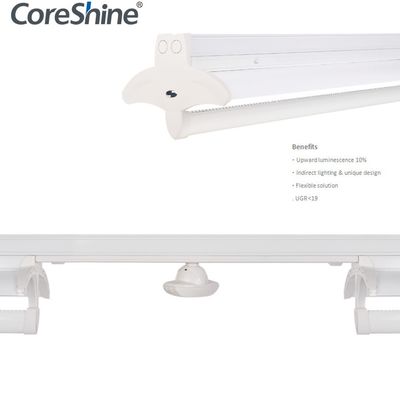

1.2m UGR19 Linear Indirect Lighting with Motion Sensor Module

Basic Information
Place of Origin: Guangdong, China
Brand Name: CoreShine
Certification: UL, LVD, CE, ENEC, TUV, SAA, C-TICK, CB, GS, VDE, ETL
Model Number: CUM-0608-X1 WH -X2
Minimum Order Quantity: 1 set
Price: US$15-US$25/set
Packaging Details: one set in one box (1678*170*92mm)
Delivery Time: 6-10 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20000-25000 sets/month
Detail Information
Item: U-Line With Motion Sensor Module Material: Aluminum Alloy + PMMA Lens/PC Cover
Length: 1200mm CRI (Ra>): 80/95
UGR: <19 Sensor: Daylight Sensor; Motive Sensor; D+M Sensor
Beam Angle: 60°;120°; Double Asymmetric CCT: 3000K/4000K/5000K/6000K
Lumen: 4000lm-16000lm Dimming: DALI, 1-10V, DIMswitch
Color: White Light Color: Warm White, White, Cold White
IP Rating: IP20 Light Efficiency: 135-150lm/W
Power: 35W,50W,65W,70W,100W,150W... Warranty: 5 Years
Lifespan (hours): 50000 Working Temperature: -20 - 65 ℃
Application: Office,Library,Supermarket,Warehouse,Workshop,etc.
High Light:

1200mm 50W indirect led lighting fixtures


UGR19 indirect led lighting fixtures


1200mm 50W led linear trunking light

Product Description

UGR<19 Indirect Led Linear Light Trunking System with Daylight Sensor
Coreshine U-LINE Indirect Led Linear Lighting System is a new innovation solution for creating beautiful and efficient lighting.
  • Unique design
  • Tools Free Installation
  • 10% of the light upward and 90% reflected onto the floor
  • Delivering up to 150 lm/w
  • Low UGR <19. Perfect for school, library, classroom, shops, industry, commercial and hospitality
  • more profitability and productivity.

U-Line with Multi-sensor

The Multi-sensor system combines energy-saving with high convenience for users. Most energy can be saved by integrating motion and daylight sensors into the trunking. It can swivel and help to detect the area accurately. It ensures a sufficient level of brightness in specific areas under a defined period of time.

Group control sensor or broadcast control sensor


Coreshine Daylight Sensor:

Daylight mode operation only.

By detecting the light level, our led linear system can be self-adjustable the brightness via the Daylight sensor, then it reaches the purpose of saving energy and cost.

1.2m UGR19 Linear Indirect Lighting with Motion Sensor Module 0


Coreshine Motion Sensor:

Motion mode operation only.

On this mode, it can detect the long-distance motion of humans via motion sensors.


  H:8m H:15m

1.2m UGR19 Linear Indirect Lighting with Motion Sensor Module 1

Lamp installation height>=3m



Lamp installation height<=3m

if it's 3m

L1=tan40°*H*2    L1=5M

L1=tan20°*H*2    L1=2.1M

Lamp installation height>=6m



Lamp installation height<=6m

if it's 6m

L1=tan40°*H*2   L1=10M

L1=tan20°*H*2   L1=4.3M


H means installation height
L1 means the horizontal detection distance on ground when the horizontal angle is 80°
L2 means the vertical detection distance on the ground when the vertical angle is 40°
tan40° =0.84      tan20° =0.36
When the installation environment is wide space without any Occlusion of objects, sensor detection distance can be increased by 20%.
When the installation environment around the metal, such as metal shelves, the sensor detection distance will be decreases.


Coreshine Motion + Daylight:

This mode combines the motion sensor and daylight sensor for light dimming control. It can automatically adjust the lighting to reach the defined brightness, then remains at a lower brightness level during the stand-by time, if there is no any object be detected again after the stand-by time, the lamp will automatically be switched off. This mode can be widely applied in such as office, factory, or warehouse. It can save energy largely without any manual control.

1.2m UGR19 Linear Indirect Lighting with Motion Sensor Module 2


Detection area can be adjusted by selecting the combination on the DIP switches to fit precisely each application.
Please noted, there will be possible to make misinformation on object detection while with setting as 100% sensitivity.
1.2m UGR19 Linear Indirect Lighting with Motion Sensor Module 3
Hold time
Refers to the time period the lamp remains at 100% illumination after motion object leaves the detection area.
Stand-by time
Refers to the time period the lamp remains at defined lower brightness level before it completely switches off in long absence people. When set to 0s, lamp will directly switches off after the hold time. When set to +∞ the lower light is maintained until motion is detected again.
1.2m UGR19 Linear Indirect Lighting with Motion Sensor Module 4
The main advantage of our microwave sensor is the long-distance detection. Comparing with Other brands, CoreShine microwave sensor can detect signal from up to 8m distance. And we will install several pieces microwave on the led linear. Our microwave sensor have the following main advantages:
Motion sensor
  • 330 ° rotation, with small angle while long distance,detect the motion from the target location.
  • High resistance to the temperature variation.
  • Except the horizontal and vertical angle, Microwave sensor also support the horizontal rotation ( 330°) and vertical rotation ( 60°)

1.2m UGR19 Linear Indirect Lighting with Motion Sensor Module 5


Length Detection Code No.
600mm 8m detection CUM-0608-X1WH-X2
15m detection CUM-0615-X1WH-X2
1200mm 8m detection CUM-1208-X1WH-X2
15m detection CUM-1215-X1WH-X2
