900mm 150lm/W High Bay Industrial Lighting Motion Sensor Module

Basic Information
Place of Origin: Guangdong, China
Brand Name: CoreShine
Certification: UL, LVD, CE, ENEC, TUV, SAA, C-TICK, CB, GS, VDE, ETL
Model Number: CUM-0608-X1 WH -X2
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: one set in one box (1678*170*92mm)
Delivery Time: 6-10 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20000-25000 sets/month
Detail Information

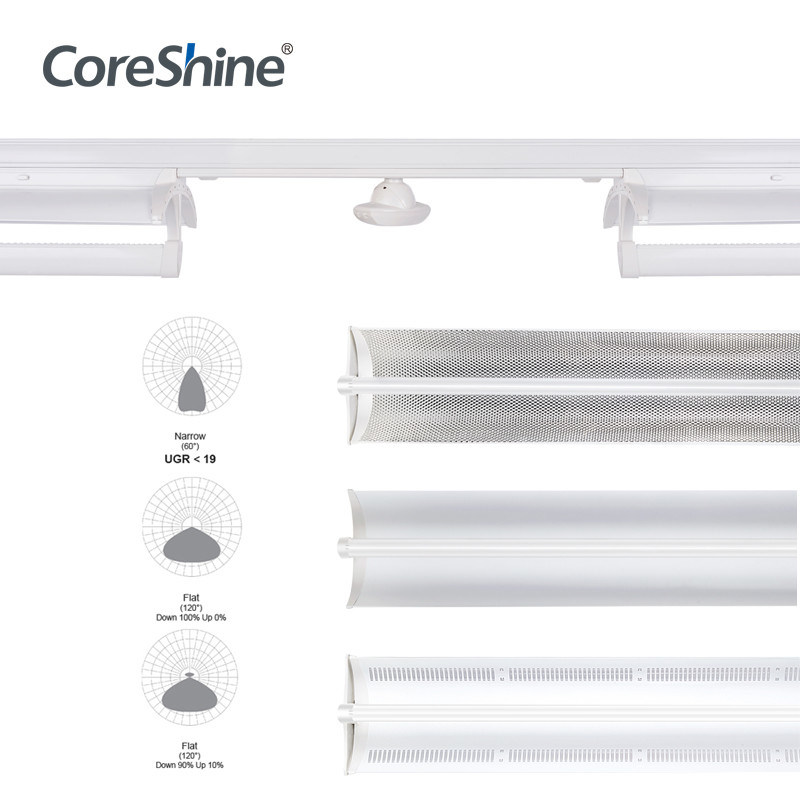

Item: U-Line With Motion Sensor Module Material: Aluminum Alloy + PMMA Lens/PC Cover
Length: 900mm UGR: <19
Power: 35W,50W,65W,70W,120W,150W... Sensor: Daylight Sensor; Motion Sensor; D+M Sensor
Beam Angle: 60°;120°; Double Asymmetric Dimming: DALI, 1-10V, DIMswitch
Light Color: Warm White, White, Cold White Light Efficiency: 135-150lm/W
High Light:

150lm/W Led Linear Trunking System


900mm high bay industrial lighting


150lm/W high bay industrial lighting

Product Description

900mm Motion Sensor Module | Linear High Bay Industrial Lighting
Led Linear Trunking System with Daylight Motion Sensor Module
Coreshine U-LINE Indirect Led Linear Lighting System is a new innovation solution for creating beautiful and efficient lighting.


1. High efficiency up to 150 lm/w, energy savings up to 90% long life, 50,000 hours lifespan

2. 60 degree 120 degrees diffuse with track spotlight which can be adjustable in any angle

3. Quick start without delay and flickery

4. Low THD under 15%, High Power factor >0.95

5. RoHS-conformity, no mercury

6. Directly fits into USA standard and Europe standard

7. Length available in 600mm, 1200mm, 1500mm, 2400mm, 3000mm

8. Widely Application: Supermarkets, Shopping malls, Exhibition halls, supermarkets, Office, Parking Lot …




U-Line with Multi-sensor

The Multi-sensor system combines energy-saving with high convenience for users. Most energy can be saved by integrating motion and daylight sensors into the trunking. It can swivel and help to detect the area accurately. It ensures a sufficient level of brightness in specific areas under a defined period of time.

Group control sensor or broadcast control sensor


Coreshine Daylight Sensor:

Daylight mode operation only.

By detecting the light level, our led linear system can be self-adjustable the brightness via the Daylight sensor, then it reaches the purpose of saving energy and cost.

900mm 150lm/W High Bay Industrial Lighting Motion Sensor Module 0


Coreshine Motion Sensor:

Motion mode operation only.

On this mode, it can detect the long-distance motion of humans via motion sensors.


  H:8m H:15m

900mm 150lm/W High Bay Industrial Lighting Motion Sensor Module 1

Lamp installation height>=3m



Lamp installation height<=3m

if it's 3m

L1=tan40°*H*2    L1=5M

L1=tan20°*H*2    L1=2.1M

Lamp installation height>=6m



Lamp installation height<=6m

if it's 6m

L1=tan40°*H*2   L1=10M

L1=tan20°*H*2   L1=4.3M


Coreshine Motion + Daylight:

This mode combines the motion sensor and daylight sensor for light dimming control. It can automatically adjust the lighting to reach the defined brightness, then remains at a lower brightness level during the stand-by time, if there is no any object be detected again after the stand-by time, the lamp will automatically be switched off. This mode can be widely applied in such as office, factory, or warehouse. It can save energy largely without any manual control.

900mm 150lm/W High Bay Industrial Lighting Motion Sensor Module 2


Detection area can be adjusted by selecting the combination on the DIP switches to fit precisely each application.
Please noted, there will be possible to make misinformation on object detection while with setting as 100% sensitivity.
900mm 150lm/W High Bay Industrial Lighting Motion Sensor Module 3
Hold time
Refers to the time period the lamp remains at 100% illumination after motion object leaves the detection area.
900mm 150lm/W High Bay Industrial Lighting Motion Sensor Module 4
The main advantage of our microwave sensor is the long-distance detection. Comparing with Other brands, CoreShine microwave sensor can detect signal from up to 8m distance. And we will install several pieces microwave on the led linear. Our microwave sensor have the following main advantages:
Motion sensor
  • 330 ° rotation, with small angle while long distance,detect the motion from the target location.
  • High resistance to the temperature variation.
  • Except the horizontal and vertical angle, Microwave sensor also support the horizontal rotation ( 330°) and vertical rotation ( 60°)

900mm 150lm/W High Bay Industrial Lighting Motion Sensor Module 5


Length detection Code No.
600mm 8m detection CUM-0608-X1WH-X2
15m detection CUM-0615-X1WH-X2
1200mm 8m detection CUM-1208-X1WH-X2
15m detection CUM-1215-X1WH-X2
