Place of Origin: | Guangdong, China |
---|---|
Brand Name: | CoreShine |
Certification: | UL, LVD, CE, ENEC, TUV, SAA, C-TICK, CB, GS, VDE, ETL |
Model Number: | CFM-0608-X1WH-X2 |
Minimum Order Quantity: | 1 piece |
Price: | Negotiable |
Packaging Details: | one set in one box (1678*170*92mm) |
Delivery Time: | 5-8 working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 25000-30000 pcs/month |

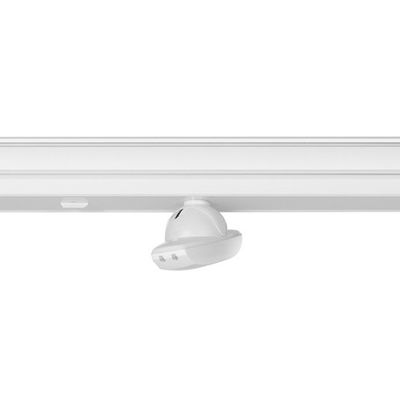

Item: | Led Linear Light With Sensor Module | Length: | 1500mm, 2400mm, 3000mm |
---|---|---|---|
Power: | 35W,50W,65W,70W,100W... | CRI (Ra>): | 80/95 |
CCT: | 3000K/4000K/5000K/6000K | PF: | >0.95 |
Dimming: | DALI, 1-10V, DIMswitch | Driver: | Coreshine/Rubycon |
Highlight: | 95CRI suspended linear led lighting,6000K suspended linear led lighting,95CRI linear pendant lighting |
Daylight Sensor:
Daylight mode operation only.
By detecting the light level, our led linear system can be self-adjustable the brightness via the Daylight sensor, then it reaches the purpose of saving energy and cost.
Motion Sensor:
Motion mode operation only.
On this mode, it can detect the long-distance motion of humans via motion sensors.
H:8m | H:15m | |
|
Lamp installation height>=3m L1:2.5mm L2:2m Lamp installation height<=3m if it's 3m L1=tan40°*H*2 L1=5M L1=tan20°*H*2 L1=2.1M |
Lamp installation height>=6m L1:1mm L2:1m Lamp installation height<=6m if it's 6m L1=tan40°*H*2 L1=10M L1=tan20°*H*2 L1=4.3M |
Motion + Daylight:
This mode combines the motion sensor and daylight sensor for light dimming control. It can automatically adjust the lighting to reach the defined brightness, then remains at a lower brightness level during the stand-by time, if there is no any object be detected again after the stand-by time, the lamp will automatically be switched off. This mode can be widely applied in such as office, factory, or warehouse. It can save energy largely without any manual control.
Length | Detection | Code No. |
600mm | 8m detection | CFM-0608-X1WH-X2 |
15m detection | CFM-0615-X1WH-X2 | |
1200mm | 8m detection | CFM-1208-X1WH-X2 |
15m detection | CFM-1215-X1WH-X2 |
