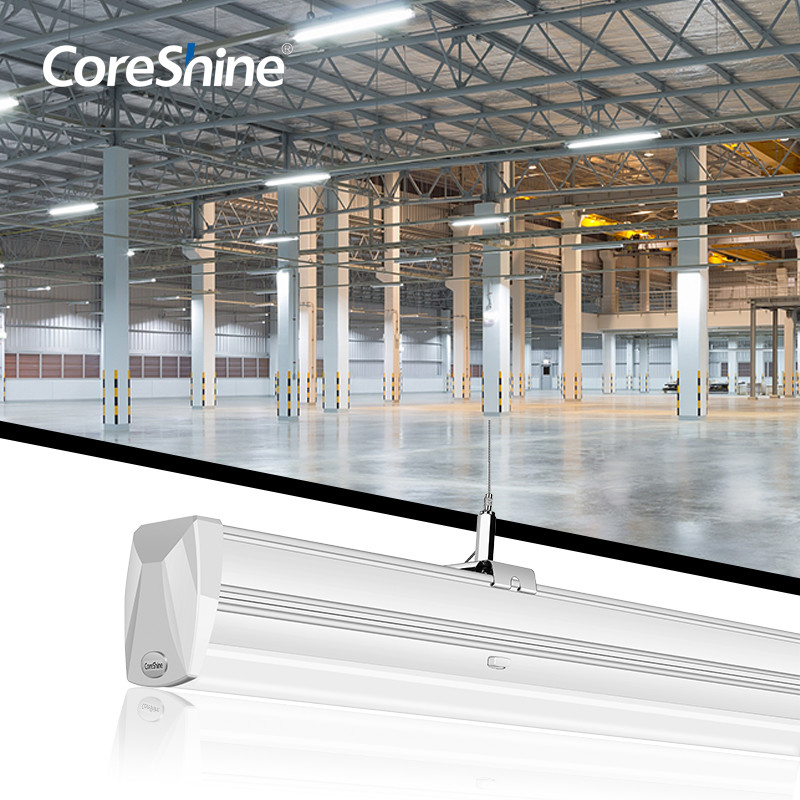

Name: Coreshine Motion Sensor Module , 100watt Industrial Warehouse Lighting
Brand: CoreShine
SKU: CFL-xxxx-X1X2-X3WH

Detail Information

Item:	Led Linear Trunking Solutions	Length:	1500mm, 2400mm, 3000mm
Power:	35W,50W,65W,70W,100W...	CRI (Ra>):	80
CCT:	3000K/4000K/5000K/6000K	PF:	>0.95
Dimming:	DALI, 1-10V, DIMswitch	Driver:	Coreshine/Rubycon
High Light:	100watt linear pendant light fixture , Coreshine linear pendant light fixture , 100watt direct indirect linear pendant lighting

Product Description

Motion Sensor Module for Linear Light Fixture , Industrial Warehouse Lighting

Aluminum Housing Led Line Lights with Motion Sensor Module Toolless Installation

DESCRIPTION

Coreshine S-Line with Multi-sensor Multi-sensor system combines energy saving with highly convenience for user. Most energy can be saved by integrating motion and daylight sensor into the trunking. It can swivel and help to detect the area accurately. It ensures a sufficient level of brightness in specific areas under a defined period of time.

【SOLID, DURABLE】Construct with iron, aluminum and acrylic, giving the capabilities to resist impact, and stand the test of time.

【EASY INSTALLATIONE】The adjustable linear chandelier includes all mounting hardware for quick and easy installation. Can be directly installed on the ceiling with a set of installed components and instruction manual. Chandelier with adjustable lines, you can adjustable the length of the line.

【FASHION DESIGN】This adjustable LED linear chandelier is inspired by fashionable lines. The streamlined design highlights the sense of fashion and the future. The modern pendant light design will add a fashionable look.

DETAILS

Coreshine Daylight Sensor:

Daylight mode operation only.

By detecting the light level, our led linear system can be self-adjustable the brightness via the Daylight sensor, then it reaches the purpose of saving energy and cost.

Coreshine Motion Sensor Module , 100watt Industrial Warehouse Lighting 0

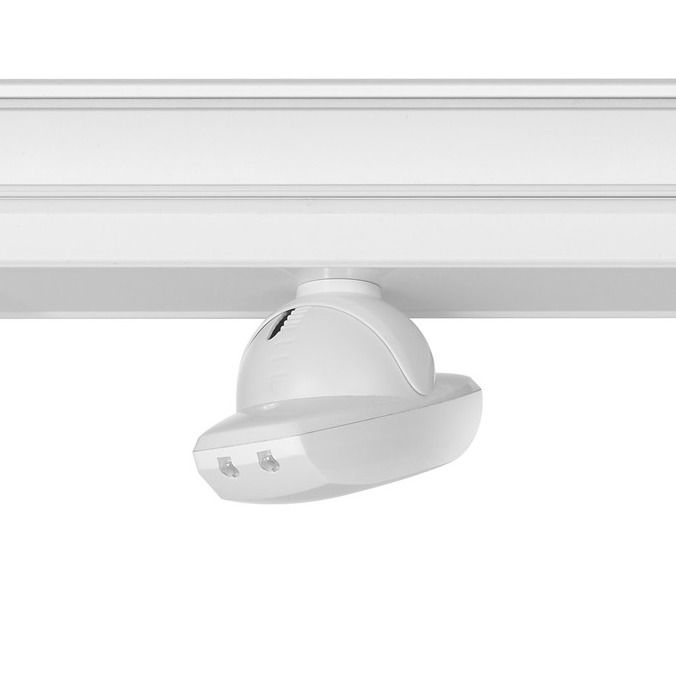

Motion Sensor:

Motion mode operation only.

On this mode, it can detect the long-distance motion of humans via motion sensors.

H:8m

H:15m

Coreshine Motion Sensor Module , 100watt Industrial Warehouse Lighting 1

Lamp installation height>=3m

L1:2.5mm

L2:2m

Lamp installation height<=3m

if it's 3m

L1=tan40°*H*2 L1=5M

L1=tan20°*H*2 L1=2.1M

Lamp installation height>=6m

L1:1mm

L2:1m

Lamp installation height<=6m

if it's 6m

L1=tan40°*H*2 L1=10M

L1=tan20°*H*2 L1=4.3M

H means installation height

L1 means the horizontal detection distance on ground when the horizontal angle is 80°

L2 means the vertical detection distance on the ground when the vertical angle is 40°

When the installation environment is wide space without any Occlusion of objects, sensor detection distance can be increased by 20%.

When the installation environment around the metal, such as metal shelves, the sensor detection distance will be decreases.

Motion + Daylight:

This mode combines the motion sensor and daylight sensor for light dimming control. It can automatically adjust the lighting to reach the defined brightness, then remains at a lower brightness level during the stand-by time, if there is no any object be detected again after the stand-by time, the lamp will automatically be switched off. This mode can be widely applied in such as office, factory, or warehouse. It can save energy largely without any manual control.

Coreshine Motion Sensor Module , 100watt Industrial Warehouse Lighting 2

Hold time

Refers to the time period the lamp remains at 100% illumination after motion object leaves the detection area.

Stand-by time

Refers to the time period the lamp remains at defined lower brightness level before it completely switches off in long absence people. When set to 0s, lamp will directly switches off after the hold time. When set to +∞ the lower light is maintained until motion is detected again.

The main advantage of our microwave sensor is the long-distance detection. Comparing with Other brands, CoreShine microwave sensor can detect signal from up to 8m distance. And we will install several pieces microwave on the led linear. Our microwave sensor have the following main advantages:

Motion sensor

330 ° rotation, with small angle while long distance,detect the motion from the target location.
High resistance to the temperature variation.
Except the horizontal and vertical angle, Microwave sensor also support the horizontal rotation ( 330°) and vertical rotation ( 60°)

Coreshine Motion Sensor Module , 100watt Industrial Warehouse Lighting 4

Length	Detection	Code No.
600mm	8m detection	CFM-0608-X₁WH-X₂
600mm	15m detection	CFM-0615-X₁WH-X₂
1200mm	8m detection	CFM-1208-X₁WH-X₂
1200mm	15m detection	CFM-1215-X₁WH-X₂

Tag:

Place of Origin:	Guangdong, China
Brand Name:	CoreShine
Certification:	UL, LVD, CE, ENEC, TUV, SAA, C-TICK, CB, GS, VDE, ETL
Model Number:	CFL-xxxx-X1X2-X3WH

Minimum Order Quantity:	1 piece
Price:	Negotiable
Packaging Details:	one set in one box (167817092mm)
Delivery Time:	5-8 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	25000-30000 pcs/month
