8m Detective Range Motion Sensor Module Linear Lighting for Warehouse

Basic Information
Place of Origin: Guangdong, China
Brand Name: CoreShine
Certification: UL, LVD, CE, ENEC, TUV, SAA, C-TICK, CB, GS, VDE, ETL
Model Number: CUM-0608-X1 WH -X2
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: one set in one box (1678*170*92mm)
Delivery Time: 6-10 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20000-25000 sets/month
Detail Information
Item: U-Line With Motion Sensor Module Material: Aluminum Alloy
Length: 1500mm Light Efficiency: 135-150lm/W
Sensor: Daylight Sensor; Motive Sensor; D+M Sensor Dimming: DALI, 1-10V, DIMswitch
Color: White IP Rating: IP20
High Light:

150cm indirect led lighting fixtures

,

135lm/w indirect led lighting fixtures

,

150cm linear hanging lights


Product Description

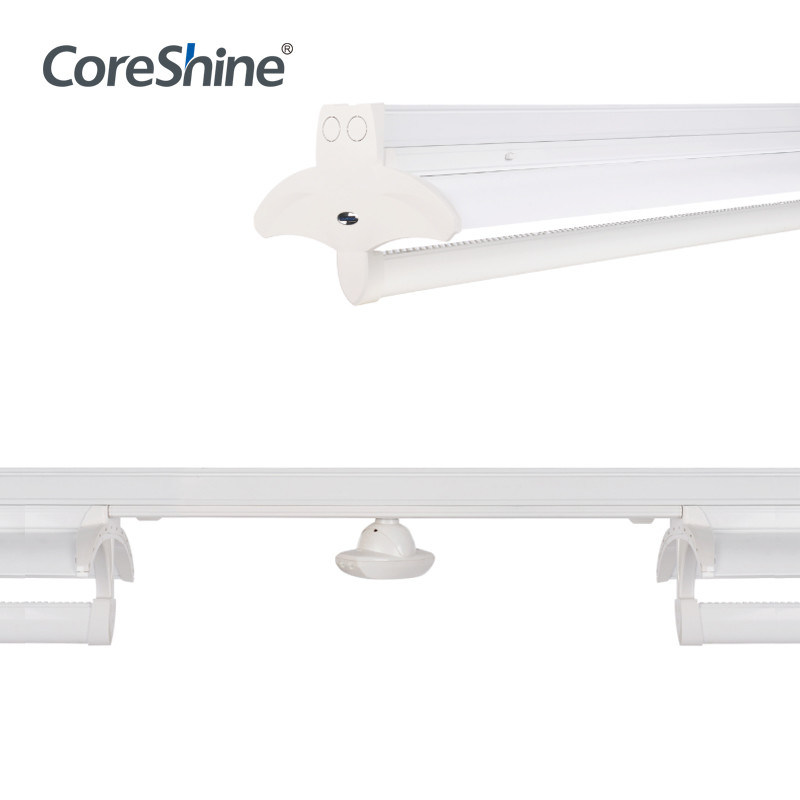

8m Detective Range Motion Sensor Module | Linear Lighting for Warehouse

Smart Indirect Led Linear Lighting with Motion Sensor Module

DESCRIPTION
Coreshine U-LINE This LED linear pendant light use best quality drivers along with advance heat sink technology, which cools down the lighters quickly thereby enabling high CRI ( CRI>80) , less power consumption and supporting the green drive.


(1) New design LED pendant light come from China professional customized LED linear light manufacturer.

(2) Aluminum frame with white painted or original aluminum color options available.

(3) Central safety emergency supply or Dimming DALI driver / 1-10V driver, built-in battery supply options available, 5 years warranty.

(4) Perfect lighting solution for office, shopping mall and some other commercial places.


DETAILS

U-Line with Multi-sensor

The Multi-sensor system combines energy-saving with high convenience for users. Most energy can be saved by integrating motion and daylight sensors into the trunking. It can swivel and help to detect the area accurately. It ensures a sufficient level of brightness in specific areas under a defined period of time.

Group control sensor or broadcast control sensor



Coreshine Daylight Sensor:

Daylight mode operation only.

By detecting the light level, our led linear system can be self-adjustable the brightness via the Daylight sensor, then it reaches the purpose of saving energy and cost.

8m Detective Range Motion Sensor Module Linear Lighting for Warehouse 0



Coreshine Motion Sensor:

Motion mode operation only.

On this mode, it can detect the long-distance motion of humans via motion sensors.



  H:8m H:15m

8m Detective Range Motion Sensor Module Linear Lighting for Warehouse 1

Lamp installation height>=3m

L1:2.5mm

L2:2m

Lamp installation height<=3m

if it's 3m

L1=tan40°*H*2    L1=5M

L1=tan20°*H*2    L1=2.1M

Lamp installation height>=6m

L1:1mm

L2:1m

Lamp installation height<=6m

if it's 6m

L1=tan40°*H*2   L1=10M

L1=tan20°*H*2   L1=4.3M



H means installation height
L1 means the horizontal detection distance on ground when the horizontal angle is 80°
L2 means the vertical detection distance on the ground when the vertical angle is 40°
tan40° =0.84      tan20° =0.36
When the installation environment is wide space without any Occlusion of objects, sensor detection distance can be increased by 20%.
When the installation environment around the metal, such as metal shelves, the sensor detection distance will be decreases.



Coreshine Motion + Daylight:

This mode combines the motion sensor and daylight sensor for light dimming control. It can automatically adjust the lighting to reach the defined brightness, then remains at a lower brightness level during the stand-by time, if there is no any object be detected again after the stand-by time, the lamp will automatically be switched off. This mode can be widely applied in such as office, factory, or warehouse. It can save energy largely without any manual control.

8m Detective Range Motion Sensor Module Linear Lighting for Warehouse 2

Setting:

Sensitivity
Detection area can be adjusted by selecting the combination on the DIP switches to fit precisely each application.
Please noted, there will be possible to make misinformation on object detection while with setting as 100% sensitivity.
8m Detective Range Motion Sensor Module Linear Lighting for Warehouse 3

Hold time
Refers to the time period the lamp remains at 100% illumination after motion object leaves the detection area.
Stand-by time
Refers to the time period the lamp remains at defined lower brightness level before it completely switches off in long absence people. When set to 0s, lamp will directly switches off after the hold time. When set to +∞ the lower light is maintained until motion is detected again.
8m Detective Range Motion Sensor Module Linear Lighting for Warehouse 4
The main advantage of our microwave sensor is the long-distance detection. Comparing with Other brands, CoreShine microwave sensor can detect signal from up to 8m distance. And we will install several pieces microwave on the led linear.
Length Detection Code No.
600mm 8m detection CUM-0608-X1WH-X2
15m detection CUM-0615-X1WH-X2
1200mm 8m detection CUM-1208-X1WH-X2
15m detection CUM-1215-X1WH-X2
